Thermostat terneo sneg + VOL

Control set for ice and snow melting terneo sneg with gutter sensor VOL

Usually the sensor is installed in the gutters for cleaning the roof from snow and ice. It also prevents the formation of dangerous icicles. terneo sneg ensures efficient and economical operation of the snow melting system. The heating cable will be turned on only after the thermostat is sure of the presence of precipitation such as snow or ice.

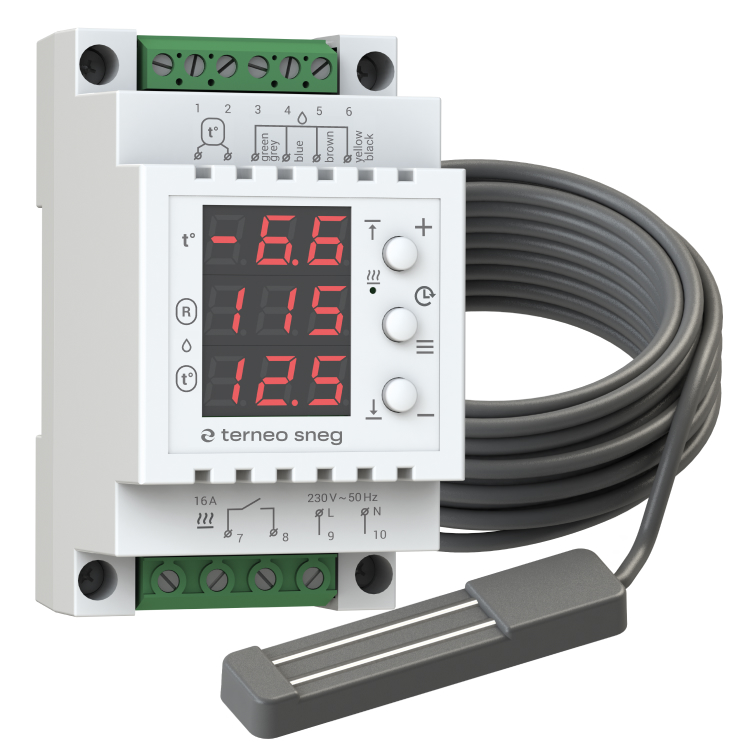

The thermostat terneo sneg + VOL is designed to work with the gutter sensor VOL, which is included in the set. The length of the connecting wire of the sensor is 10 m. The thermostat works with both analog (R10) and digital (D18) sensors.

The full range of snow melting thermostats and precipitation sensors can be viewed here.

How to set up terneo sneg

Before watching, make sure to turn on subtitles and choose your language!

Flexible settings for optimizing snow melting system operation

1. Postheating time

Choose the duration for which the heating will continue after the VOL sensor detects the absence of moisture on its surface. Necessary for the complete removal of any precipitation that may have remained on the heated surface.

2. The resistance level of moisture at which the thermostat will activate the load

By default, this parameter is optimally set for urban areas. However, if the snow melting system is located in an environmentally clean zone with low salt content in precipitation, it may require an adjustment of this parameter.

3. Timer for automatic shutdown of the snow melting system

This function protects against excessive and prolon-ged operation of the snow melting system without your supervision. If the system operates continuously for 36 hours, the thermostat will stop heating to draw your attention to potential blockage of the moisture sensor surface by leaves, gravel, etc. It also safeguards against excessive energy consumption.

4. Hysteresis

Hysteresis is the difference between the activation and deactivation temperatures of the load. Therefore, the thermostat will start checking for precipitation on the VOL sensor when the temperature is not just within the set temperature range but closer to 0 °C by the size of the hysteresis.

5. Forced heating

You can turn on the heating manually when you wish, even if the sensors do not capture the need. The duration of forced heating can be set from 0.5 to 9 hours, and the countdown to the end of heating will be displayed on the screen.

The thermostat also has a post-heating function: after the moisture sensor stops detecting the presence of snow on the surface, the system will operate for a given period of time (from 0.5 to 9 hours). This will ensure the complete melting of snow on the entire surface of the anti-icing and snow melting system.

Easy operation and installation

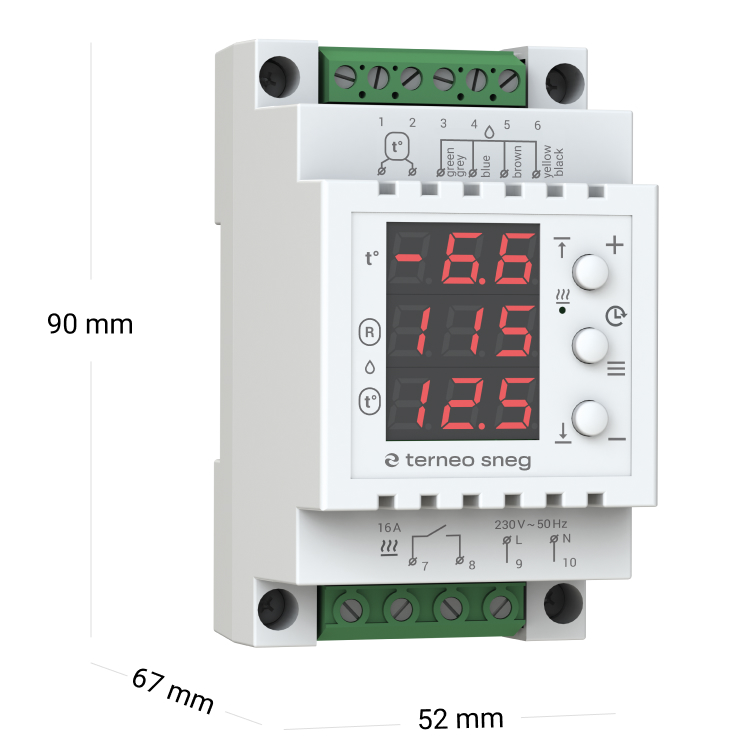

The thermostat is set up with only three buttons! The digital screen displays the temperature of the air, as well as the moisture sensor and moisture resistance on its surface. It provides easy menu navigation and displays system alerts.

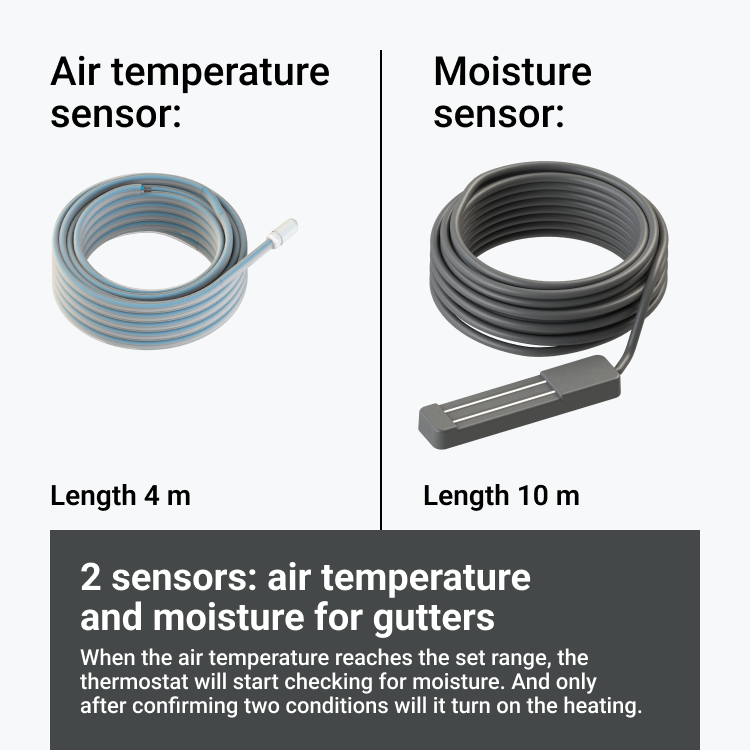

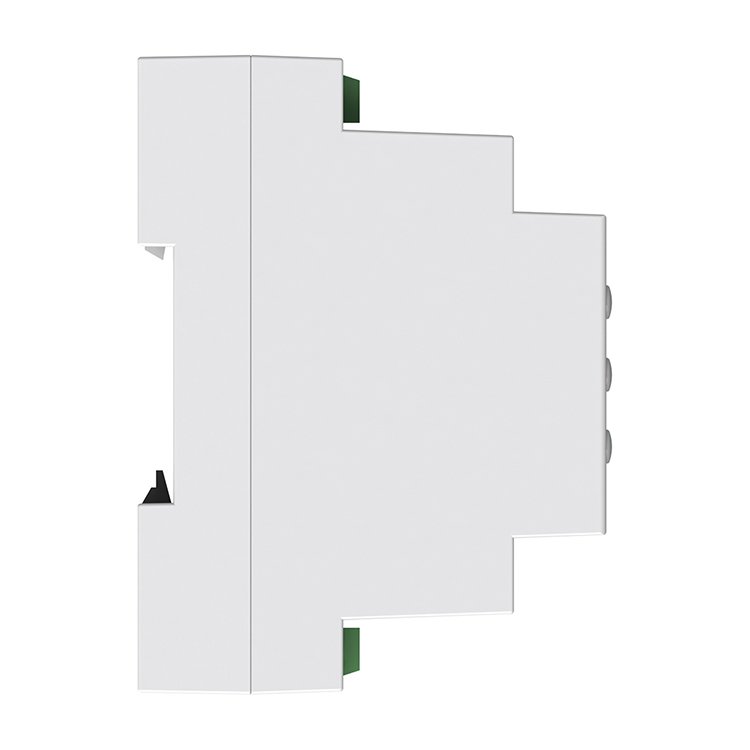

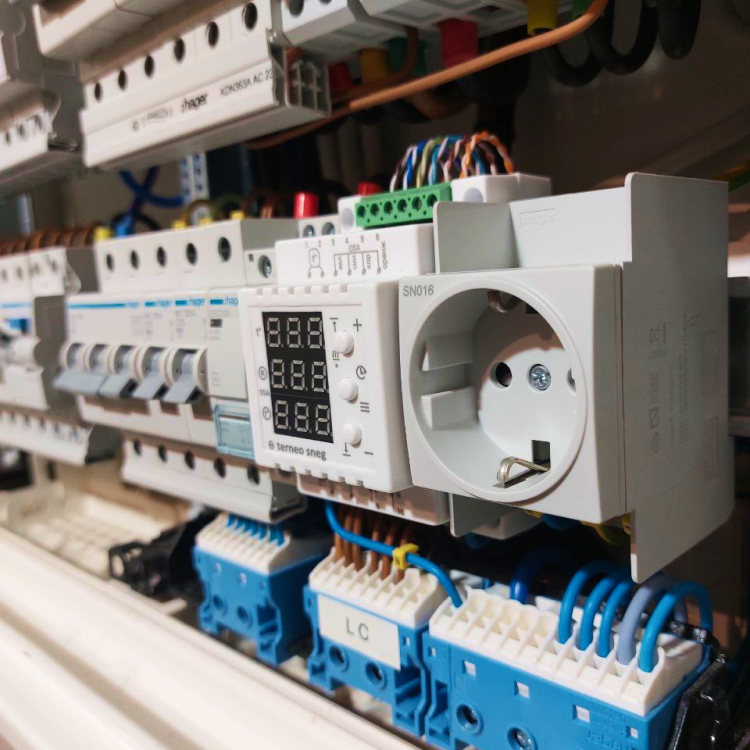

The thermostat terneo sneg is installed in the switchboard on a standard 35 mm wide DIN-rail. The package contains everything necessary for installation: the thermostat itself, moisture and temperature sensors with connecting wires 10 and 4 m long, accordingly.

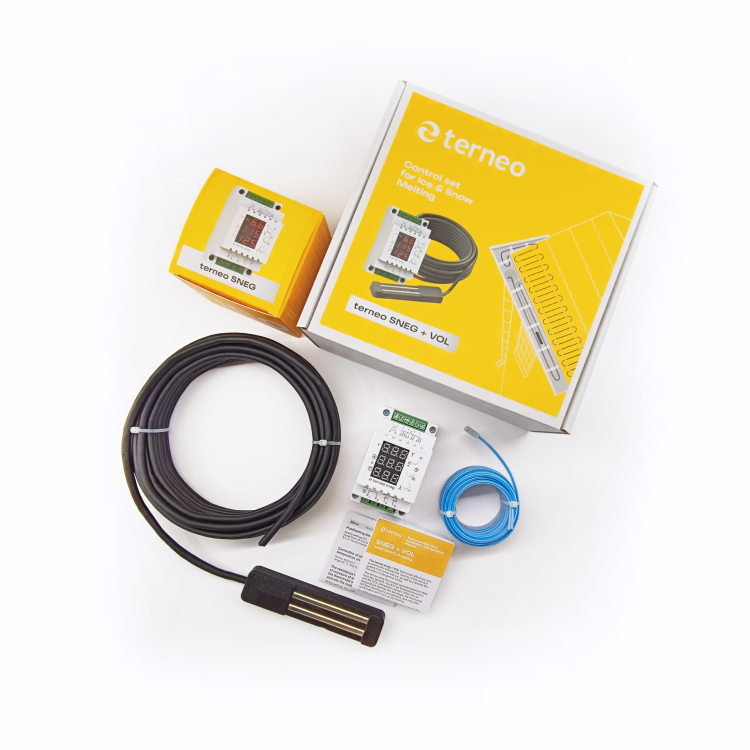

Video of unpacking the set for ice and snow melting with sensor VOL

Protection against internal overheating

The thermostat is equipped with an overheating protection: if the temperature inside the housing rises above 80 °C, the heating will stop. Heating will resume only after the temperature has dropped to 65 °C.

Universal compatibility

You can use a thermostat with most of the heating cables on the market.
