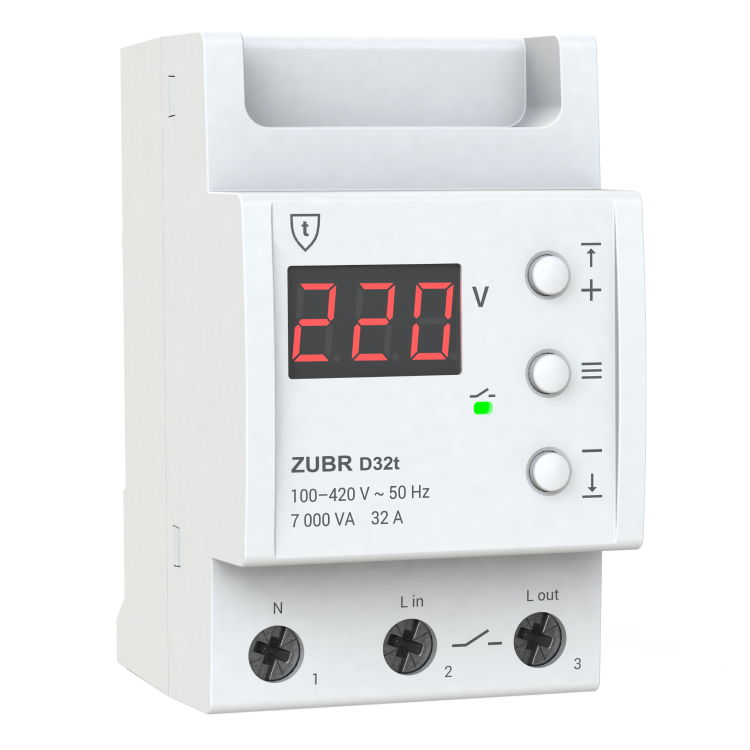

Voltage relay ZUBR D32t

Voltage relay ZUBR D32t
Voltage relay ZUBR D32t - Image 2

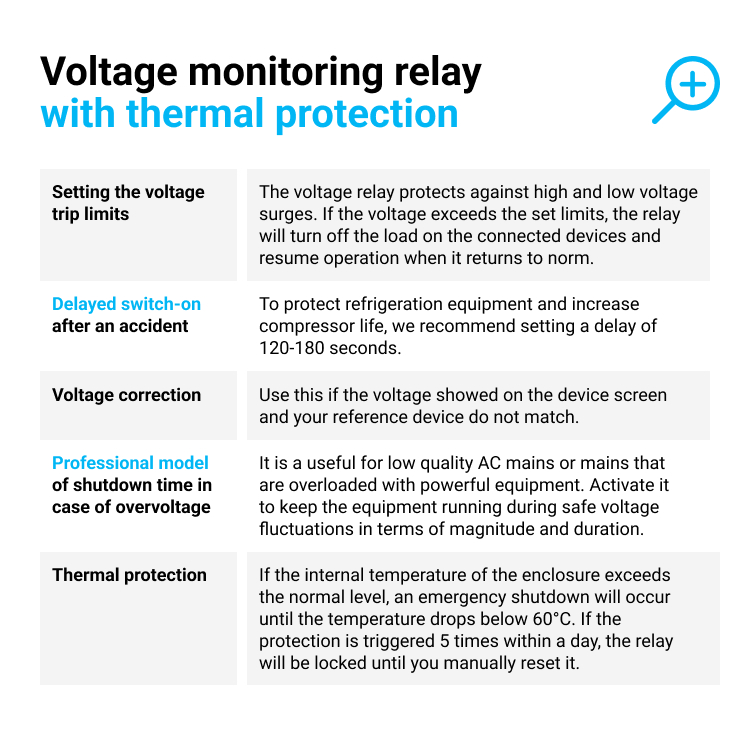

Voltage relay ZUBR D32t - Image 3
Voltage relay ZUBR D32t - Image 4
Voltage relay ZUBR D32t - Image 5
Voltage relay ZUBR D32t - Image 6
Current, A:
252532405063
  • Accurate voltage measurement by means of TrueRMS algorithm.
  • Professional model of switch off time delay.
  • Delay of actuation until voltage stabilisation.
  • Nonvolatile alarm log (stores up to 50 values).

Shipping options

Calculated individually for your region

Warranty

5 years from sale date

Opportunity to get samples and promotional materials

Manufacturer official website

You are on the official website of terneo and ZUBR brands manufacturer! Order directly from the manufacturer!

Manuals
EN


ZUBR web-manuals library

Single phase voltage relay with thermal protection

Voltage relays ZUBR D25-63 (t) are designed to protect equipment from excessive voltage fluctuations in the network. When an emergency occurs, the relay cuts off the load. It is used in single-phase AC networks (230 V). It is additionally equipped with thermal protection.

Video review on ZUBR Dt voltage relays. Please turn on English subtitles!



TrueRMS high accuracy of measurement

ZUBR D2 measures voltage with high accuracy. Operation principle of TrueRMS – algorithm reduces the influence of network interference on the accuracy of voltage measurement when the voltage shape differs from the sinusoid..

Increased safety with thermal protection

Voltage relays ZUBR D (t) are equipped with overheating protection. It is activated if the temperature inside the housing reaches 80 ° C. To extend the service life of relay contacts and reduce their sparking, load switching is realized as close as possible to the transition of the voltage sinusoid through zero.

Load Start Delay

Once the voltage has stabilized, the countdown till the load supply will be activated. The delay time can be set from 3 to 600 seconds, depending on the type of equipment connected. For equipment sensitive to frequent voltage disconnections (e.g., refrigerators and air conditioners), it is recommended to set the delay time at 120-180 seconds.

Convenient setting

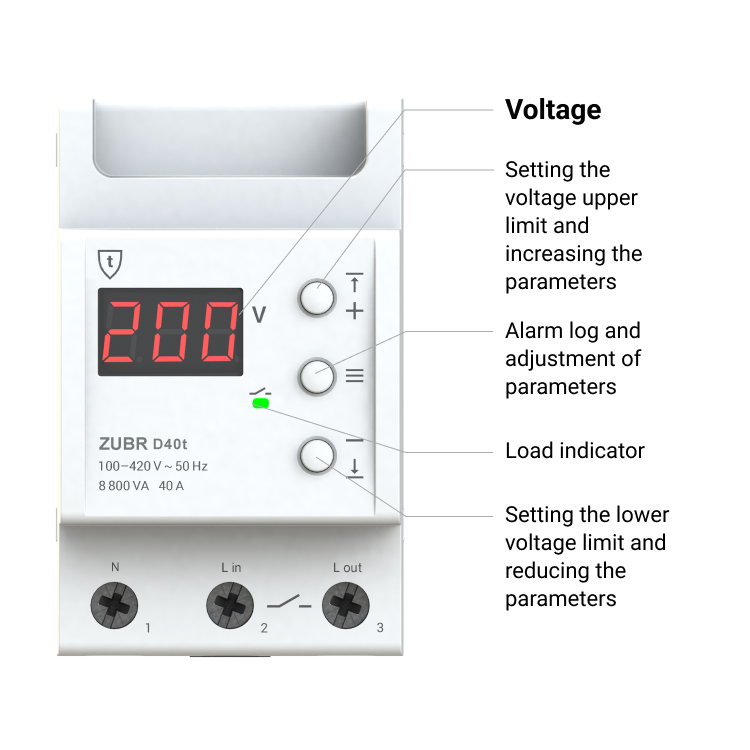

The device is controlled by only three buttons. The digital screen displays the voltage value and system information. It helps to easily set the upper and lower limit of permissible voltage.

Easy installation

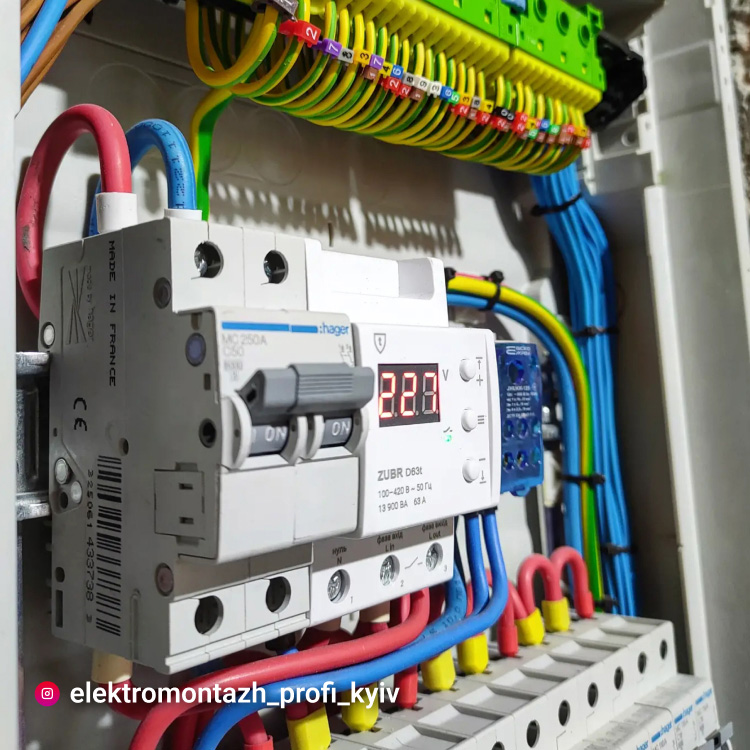

The voltage relay is installed in the switchboard on a standard 35 mm wide DIN rail. If there is increased humidity in the room or there is a possibility of water entering the device, then the board must meet the IP55 protection class (according to 14254 GOST).

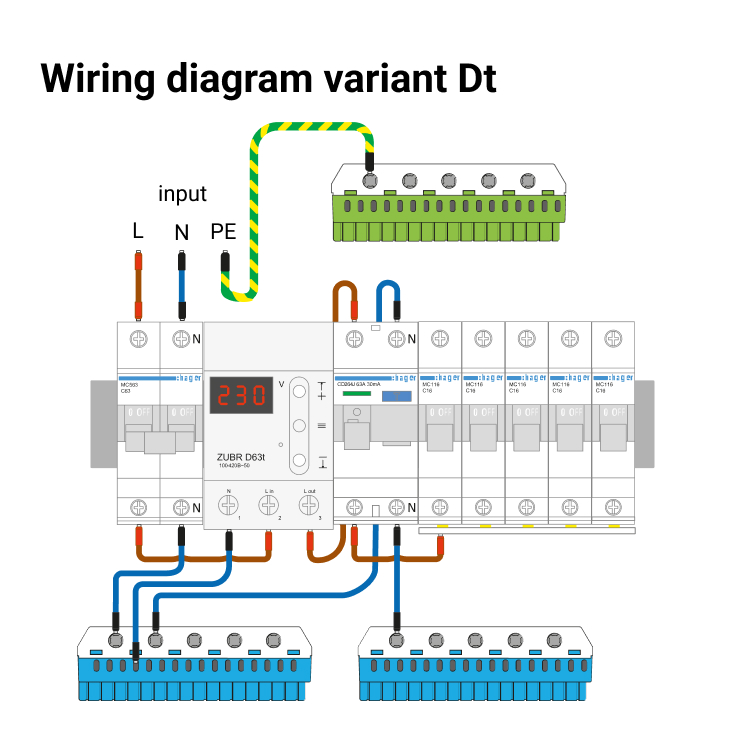

An example of a wiring diagram ZUBR D2-63 on automation Hager download

An example of a wiring diagram ZUBR D2-63 on automation Schneider download

Technical specifications ZUBR Dt

Product category

voltage relay
Installation method

on the DIN rail
Number of phases

1 ph. 230 V
Thermal protection

yes
TrueRMS

yes
Prof. switch-off delay

yes
Lower voltage limit

120-210 V
Upper voltage limit

220-280 V
Rated load capacity

7 000 VA
Load switch-off time at voltage reduction

not more than 1,2 sec
Time of load switch-off when voltage is exceeded

0,01-0,03 sec
Rated load power

32 A (max 40 A for 10 minutes)
Load switch-on delay time

3-600 sec
Тип реле

electromagnetic
Supply voltage

100–420 V
Current consumption

not more than 86 mA
Wire section

not more than 16 mm²
Weight

0,21 kg ±10%

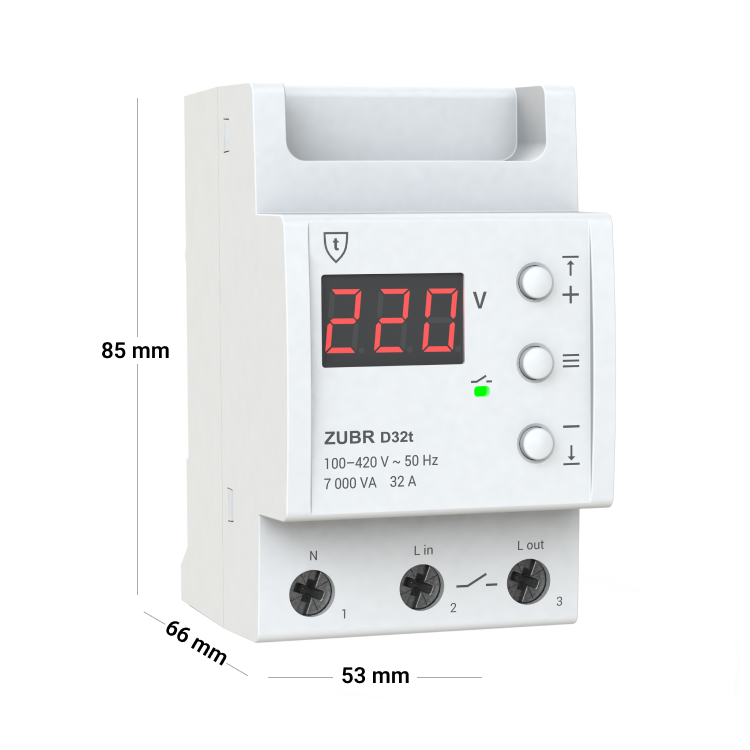

Overall dimensions (W x H x D)

53 x 85 x 66 mm
Number of actuations under load, not less than

100 000 cycles
Number of actuations without load, not less than

1 000 000 cycles
IP rating according to GOST

IP20
Capacity, VA

5 001 – 7 000
Supply package

relay, warranty certificate, technical passport, instruction, the packing box
Model group

ZUBR Dt
Current, A

32
