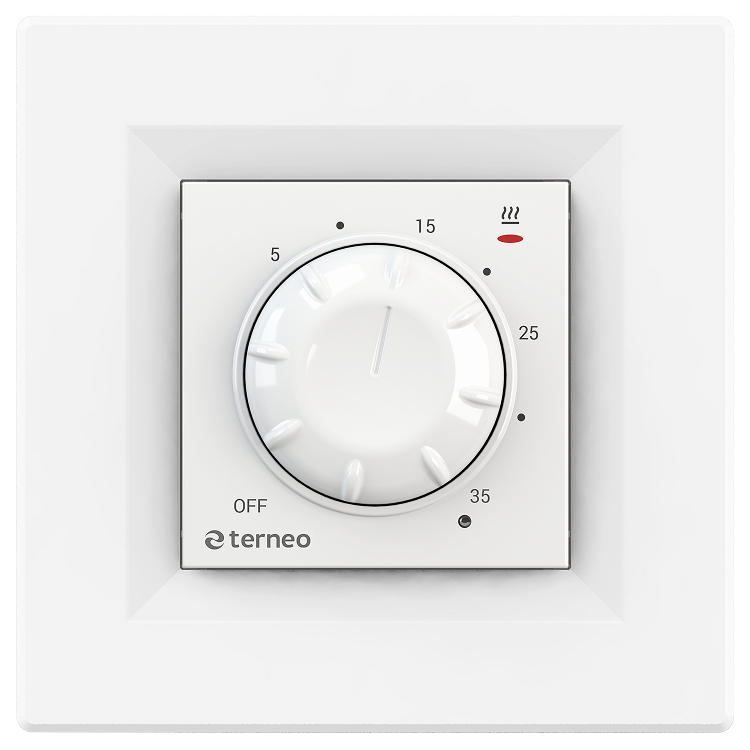

terneo rol thermostat - all in one housing
The thermostat is designed to maintain the specified air temperature in the range from 0 to 35 ° С. It does not require additional sensors to function. Ideal for rooms heated by infrared panels and convectors up to 3 kW. Operation status is indicated by using green and red LED lamps.
Comfort indoors is under your control
Turn on the heating when you wish. Just turn the mechanical handle to the temperature you want. Only one mechanical grip is used to select the temperature and adjust the load power.
Adjust the thermostat to the power of the connected equipment. This will help the thermostat more accurately maintain the desired indoor air temperature.
Self-diagnostics system
Despite the simple design, terneo rol thermostat has a self-diagnostics system. A red LED with a series of lights will alert you if there is a short circuit or a problem with the temperature sensor.
Simple installation
Everything necessary for comfortable heating is already in the package. You do not have to use an additional temperature sensor, it is already integrated in the thermostat! The installation of the device is realized in a sub-socket, and the decorative frame will provide an elegant look.
Overheating protection
If the temperature inside the housing rises above 95 ° C, the thermostat will immediately turn off. The operation will resume only after it drops to 85 ° C.
Technical properties of terneo rol
- Sphere of application:
- for infrared panels and convectors
- Type of control:
- mechanical
- Installation method:
- in outlet box
- Fusing current:
- 16
- Minimum temperature, °C:
- 0
- Maximum temperature, °C:
- +35
- Maximum load power:
- 3000 VA
- Supply voltage:
- 230 В ± 10 %
- Weight of full package:
- 0,18 кг ± 10 %
- Overall dimensions (W x H x D):
- 75 х 75 х 43 мм
- Inner overall dimensions of decorative frame:
- 45 х 45 мм
- Temperature sensor:
- NTC thermo-resistor 10 KOM at 25 °C
- Number of actuations under load, not less than:
- 50 000 cycles
- Number of actuations without load, not less than:
- 20 000 000 cycles
- IP rating according to GOST:
- ІР20

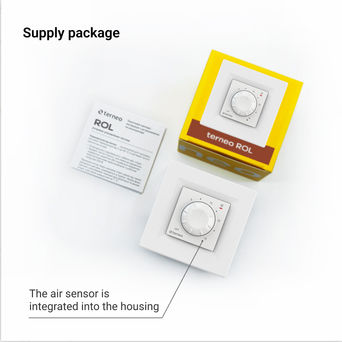

- Supply package:
- Thermostat, frame, warranty certificate, technical passport, instruction, the packing box
