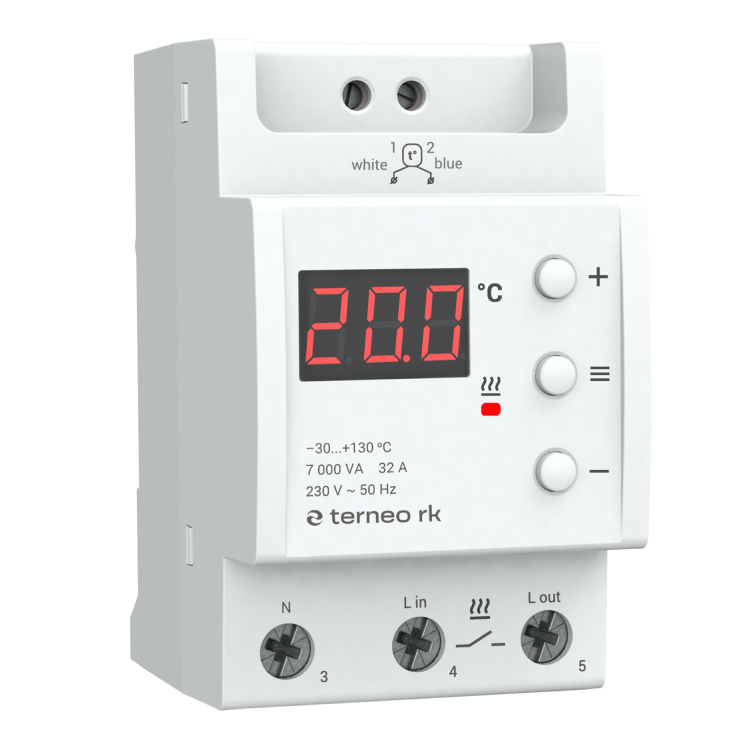

terneo rk - for both winter and summer
Thermostat is designed to control operation of electric boiler and heating system of pipelines based on heating cable. The device is capable of maintaining temperature from -55 to 125 ° C, and temperature data is supplied from a digital sensor (included). A feature of this thermostat is that it can be used for systems with high load power (up to 7000 VA).
The best choice for responsible tasks
This thermostat is used for:
- maintaining constant temperature in piping systems (e.g. in winter);
- ensuring stable operation of high-power electric boilers;
- modernization of the old electric boiler;
- heating of the sewage system.
Comfortable operation
Temperature and system notifications are displayed on the digital screen, which also simplifies menu navigation. Operation is controlled by three buttons. All settings are stored in non-volatile memory.
Maintain the desired temperature range
A feature of terneo rk is the ability to directly adjust the temperature hysteresis in the range from 0.5 to 25 ° C. By setting the temperature range to be maintained, you can reduce the number of thermostat on/off, which will extend the life of the thermostat.
Easy installation
All necessary for installation is already in the package! Installation is realized on a standard 35 mm wide DIN -rail.
Safe usage
The thermostat housing is made of non-flammable polycarbonate. The device has thermal protection: when the temperature inside the housing increases to 80 ° C, the thermostat will stop working. The operation will resume after the temperature drops to 60 ° С and one of the buttons is pressed.
Universal thermostat
The device is compatible with most of the heating cables on the market. The thermostat supports operation with an analog sensor (R10) in the temperature range from -30 to 90 ° C.
Technical properties of terneo rk
- Sphere of application:
- for electric boilers, for water heating floor
- Type of control:
- digital
- Installation method:
- on the DIN rail
- Fusing current:
- 32
- Minimum temperature, °C:
- -55
- Maximum temperature, °C:
- +125
- Maximum load power:
- 7000 VA
- Supply voltage:
- 230 V ±10 %
- Weight of full package:
- 0,27 кг ±10 %

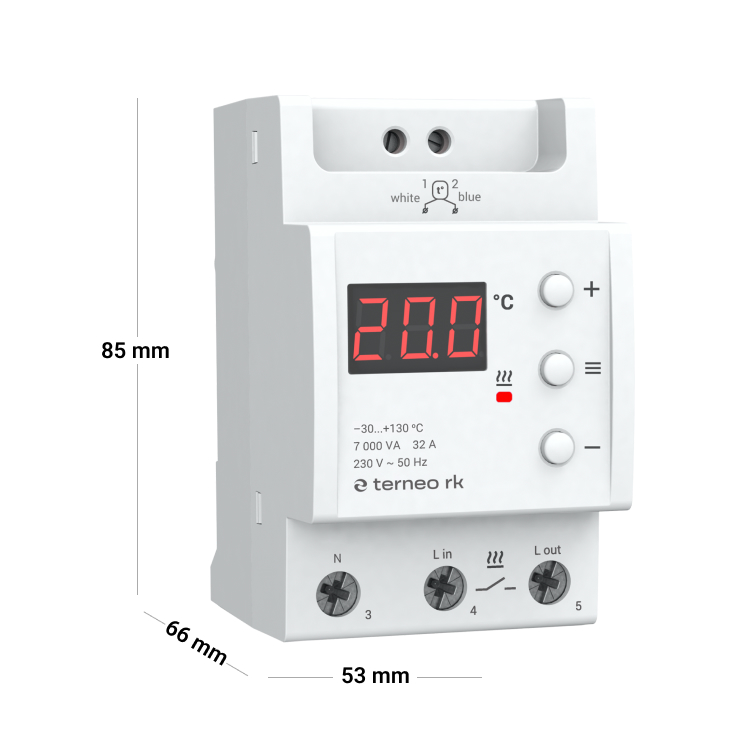

- Overall dimensions (W x H x D):
- 53 х 85 х 66 mm
- Temperature sensor:
- DS18B20 (D18)
- Length of connection wire of sensor:
- 4 m
- Number of actuations under load, not less than:
- 100 000 cycles
- Number of actuations without load, not less than:
- 1 000 000 cycles
- Temperature hysteresis:
- 0,5-25 °С
- Range of measured temperatures:
- -55...+125 °С
- IP rating according to GOST:
- ІР 20
- Supply package:
- Thermostat, temperature sensor with connected sensor, warranty certificate, technical passport, instruction, the packing box
Question:
Регулятор уходит на процентное регулирование температуры. Подключились разные датчик.Необходимо проверить целостность, исправность и правильность подключения датчика, а также удостовериться, что рядом с проводом датчика не находится источник электромагнитного поля, который препятствует передаче данных или может создавать электромагнитные помехи.
Question:
Добрый день! Контакты датчика изначально в каком положении и как предусмотрена защита если выйдет из строя датчик чтоб котел не закипел?Добрый день. С терморегулятором используется цифровой датчик DS18B20. В случае обрыва или неправильного подключения датчика терморегулятор перейдет в режим процентного управления нагрузкой. В данном режиме нагреватель будет включен в 30–минутном циклическом интервале установленный % времени (завод. настр. 50%).
Question:
можно рк использовать для управления котлом, но при этом датчик будет располагаться в воздухе?Добрый день, датчик нельзя располагать в воздухе, регулятор должен контролировать температуру теплоносителя.
