Wi-Fi thermostat for controlling underfloor heating from a smartphone via the Tuya app. Allows you to automate heating, create smart home scenarios, and control the temperature from anywhere in the world. Manufactured according to our technical requirements and under the control of DS Electronics in China at a specialized factory.
- geofencing and weather-dependent control
- weekly temperature schedule
- available in white — terneo nx
- 2 year warranty
Shipping options
Calculated individually for your region
Warranty
3 years from sale date
Opportunity to get samples and promotional materials
Manufacturer official website
You are on the official website of terneo and ZUBR brands manufacturer! Order directly from the manufacturer!
- Product info
- Characteristics
- Testimonials
Smart Wi-Fi thermostat with support of ecosystem Tuya

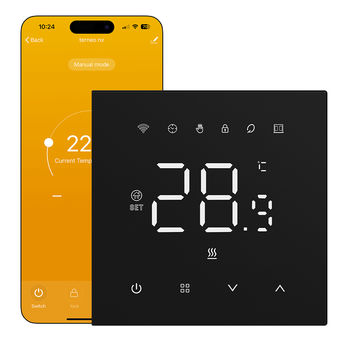

terneo nx black is a Wi-Fi thermostat for controlling underfloor heating from your smartphone via the Tuya app. It allows you to use smart automation features such as smart home scenarios, control the temperature, set schedules, automate heating, and optimize energy consumption.
The model complements the terneo line of smart thermostats and is suitable for a variety of use cases. The thermostat is also available in white – terneo nx, allowing you to match the device to modern interiors and electrical fittings.
For more information on connection and configuration, see the terneo nx web-manual.
Integrating underfloor heating into a Smart home system
If you already have Tuya ecosystem devices, the terneo nx black thermostat can be easily integrated into your smart home system and can work together with other smart devices.
You can create automation scenarios in the app: for example, turn on the heating according to a schedule, when the temperature changes, or together with other devices — lighting, sensors, or home appliances.
Smart features in the Tuya app

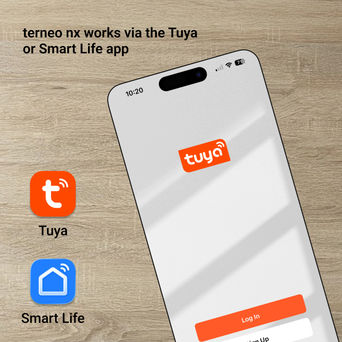

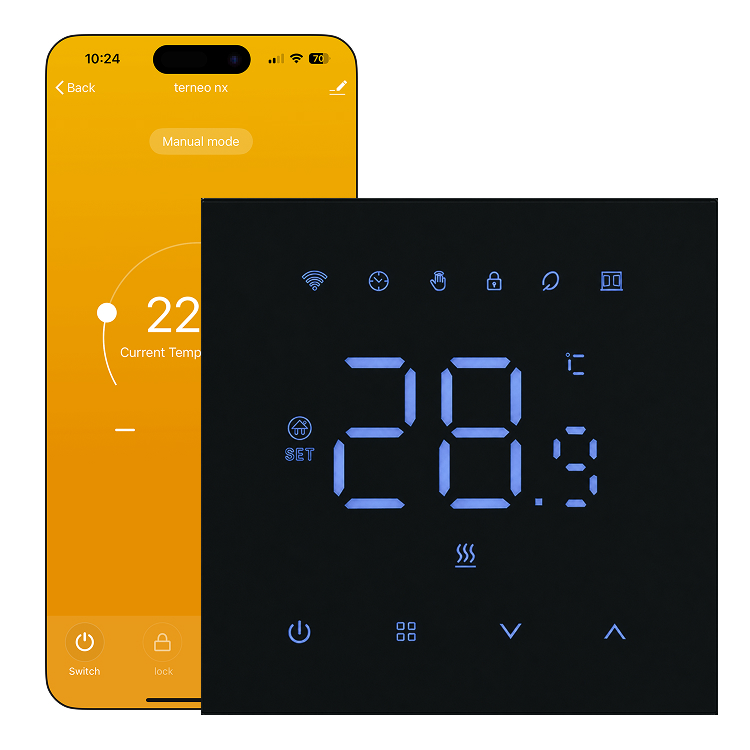

The thermostat connects to Wi-Fi and is controlled via the Tuya or Smart Life mobile app.
The app offers basic heating control functions:

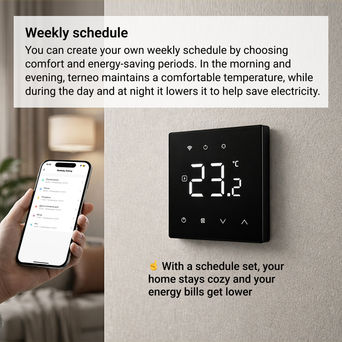

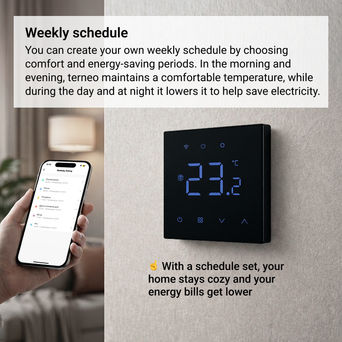

• weekly temperature schedule settings
• geofencing — automatic switch to economy mode when no one is home

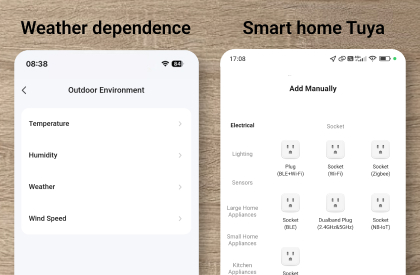

• weather-dependent control — adaptation of operation depending on the outside temperature
• creation of smart home scenarios together with other Tuya devices
Thanks to automation, the system maintains a comfortable temperature exactly when needed, helping to optimize energy consumption.
Modern design and installation

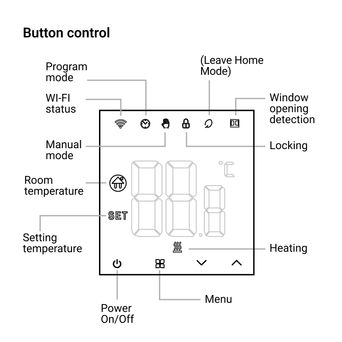

terneo nx black has a large informative display with touch control, which is convenient to use in everyday mode. The model is also suitable for replacing popular Chinese thermostats with a large screen — the connection is made to the same wires in a standard mounting box.
Quality control and manufacturer's warranty
terneo nx black is manufactured at a specialized factory in China according to the technical requirements of the terneo brand and under the control of DS Electronics. Each device undergoes pre-sale testing, and the user receives full service support from the manufacturer.
The thermostat comes with a 2 year warranty, including warranty service and replacement of the device in case of a warranty claim.
Technical properties of terneo nx
- Sphere of application:
- for underfloor heating
- Type of control:
- wi-fi
- Installation method:
- in outlet box
- Fusing current:
- 16
- Characteristics:
- protection from children, remote access (wi-fi)
- Maximum load power:
- 3000 VA
- Supply voltage:
- 230 V ±10%
- Weight of full package:
- 0,23 kg ±10%

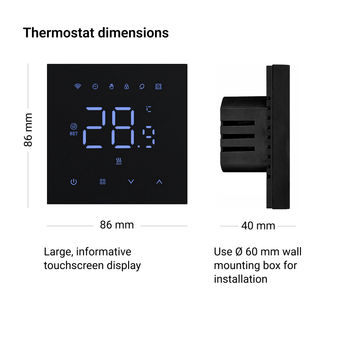

- Overall dimensions (W x H x D):
- 86 х 86 х 40 mm
- Inner overall dimensions of decorative frame:
- 45 х 45 mm
- Temperature sensor:
- NTC 10 kOhm
- Length of connection wire of sensor:
- 3 m
- Temperature hysteresis:
- 0,5...10 °С
- IP rating according to GOST:
- ІР 20
- Wireless networ standard (Wi-Fi):
- 802.11 b/g/n
- Minimal recommended Internet connection speed:
- 128 kbit/s
- Operating frequency range:
- 2400-2483,5 MHz
- Operation limits (floor):
- 15...95 °C
- Regulation range (floor):
- 25...95 °C

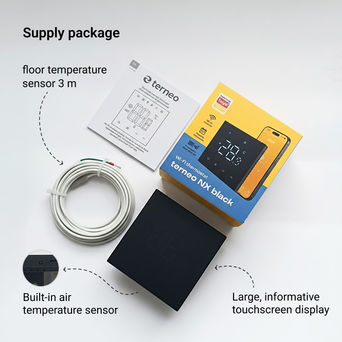

- Supply package:
- thermostat, temperature sensor with connecting wire, screws, instruction, the packing box
