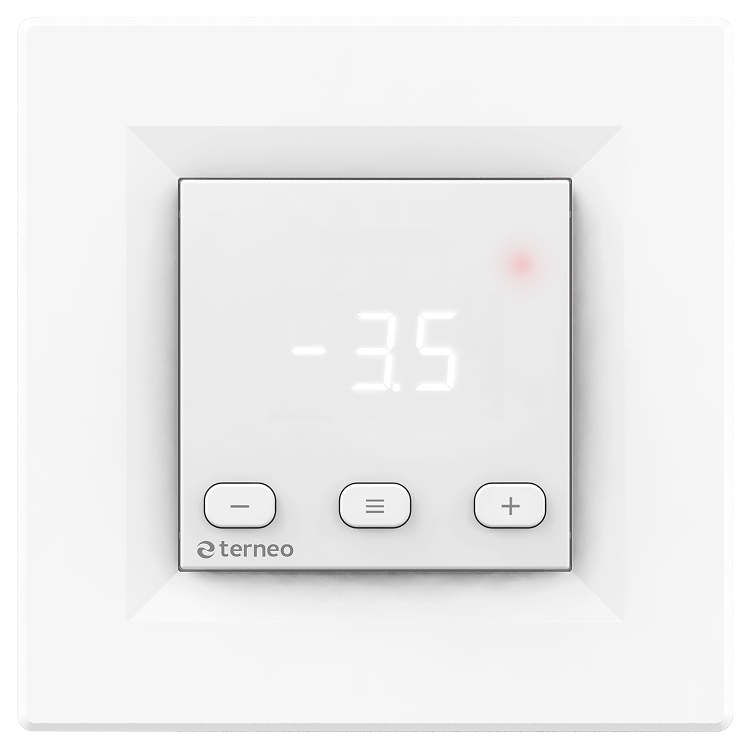

Take care of safety in winter with terneo kt
The thermostat is designed to work with anti-icing and snow melting systems. It uses an air temperature output sensor for its operation. Heating is carried out in the range of temperature at which icicles on the roof or ice on the ground can occur. You can change the range based on the location of the heating system.
Easy operation

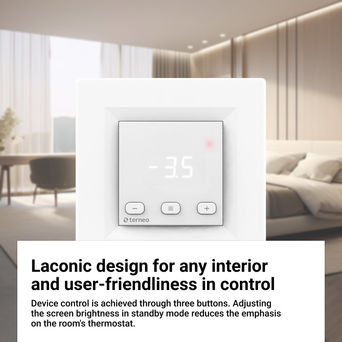

You can adjust your settings with only three buttons! A convenient digital screen simplifies menu navigation. It also displays temperature and system notifications.
Easy installation
All you need for installation is already in the package! Installation of the thermostat is realized in a standard sub-outlet with a diameter of 60 mm. The temperature sensor must be located outside the house, avoiding direct sunlight, as well as rain and snow (for example, under the edge of the roof).
Safety first of all
You can lock the device buttons to avoid accidental change of settings. Also, the thermostat has overheating protection: if the temperature inside the housing reaches 85 °C, the thermostat will stop working. It will resume operation when the temperature drops to 80 °C.
Universal thermostat
You can use it with heating cables from most manufacturers on the market! The thermostat can also work with two types of sensors: analog (R10) or digital (DS18B20).
Technical properties of terneo kt
- Sphere of application:
- for snow melting system
- Type of control:
- digital
- Installation method:
- in outlet box
- Fusing current:
- 16
- Characteristics:
- protection from children
- Upper limit of temperature setting:
- 0...10 °С
- Lower limit of temperature setting:
- -20…-1 °С
- Maximum load power:
- 3000 VA
- Supply voltage:
- 230 V ±10%
- Weight of full package:
- 0,18 kg ±10%
- Current consumption at 230 V in active mode at maximum brightness:
- not more than 6,5 mA
- Current consumption at 230 V in sleep mode:
- not more than 1,9 mA
- Overall dimensions (W x H x D):
- 75 х 75 х 39 mm
- Inner overall dimensions of decorative frame:
- 45 х 45mm
- Temperature sensor:
- NTC thermo-resistor 10 KOM at 25 °C (R10)
- Length of connection wire of sensor:
- 3 m
- Number of actuations under load, not less than:
- 50 000 cycles
- Number of actuations without load, not less than:
- 20 000 000 cycles
- Range of measured temperatures:
- -30…+90 °С
- IP rating according to GOST:
- IP20

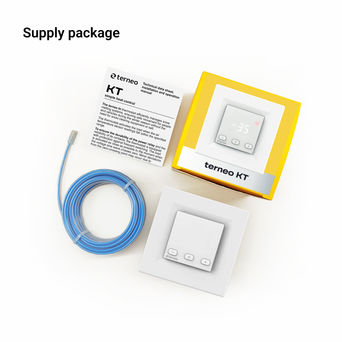

- Supply package:
- Thermostat, frame, temperature sensor with connected sensor, warranty certificate, technical passport, instruction, the packing box
Question:
Доброго дня, підкажіть будь-ласка чи можливо регулятор тернео kt поставити зовні для обігріву собачої будки. Якщо так, то куди вивести термопару і який діапазон температур поставити?. Будка утеплена плівковим нагрівачем.Доброго дня, не зовсім зрозуміло, Ви використовуєте нагрівальну плівку для підігруву, а розглядаєте терморегулятор для систем антиобледеніння, також є питання по розміщенаню нагрівальної плівки. Для з'ясування всіх питань зверніться, будь ласка, у службу техпідтримки за тел.: +38 (067) 328-09-88, +38 (050) 450-30-15.
