terneo rtp temperature controller – the best choice for simple solutions

Video review on terneo rtp thermostats. Please turn on English subtitles!

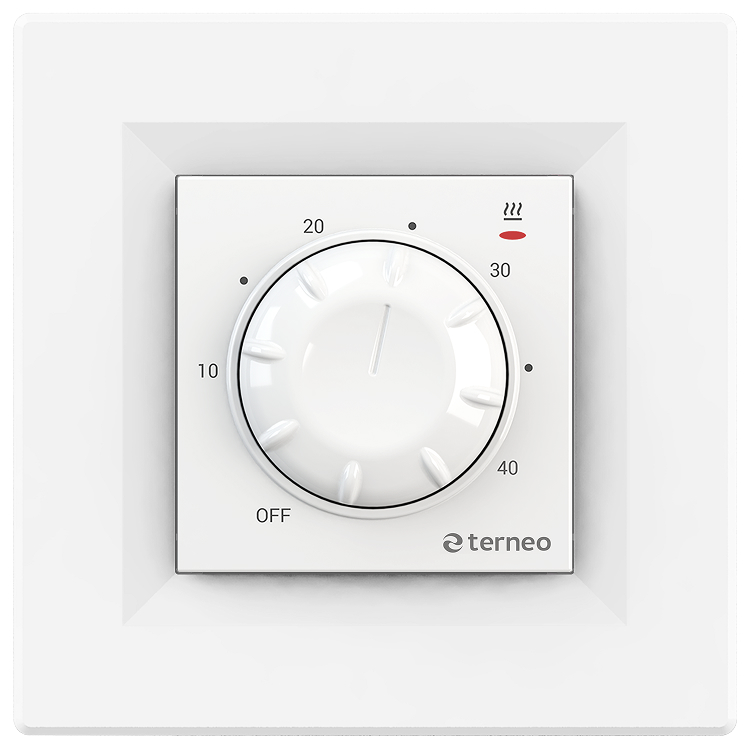

Mechanical temperature controller for “warm floor” systems based on electrical heating cable or film. It constantly maintains a predetermined temperature in the range of 10 to 40 ° C. The data of the temperature sensor placed in the floor is used for operation.

Easiest operation

To adjust the temperature, simply turn the control knob clockwise. Very simple control will allow people, who don’t get along with technology, to use the thermostat.

All you need for installation is in the package

The package includes the thermostat itself, a temperature sensor with a connecting wire of 3m length and a decorative frame. The thermostat is mounted in a standard 60 mm diameter sub-socket.
Universal thermostat

Use the device with heating cables and films of most manufacturers. Don’t limit your сhoice!

Technical specifications terneo rtp

Model group

terneo rtp

Sphere of application

for underfloor heating, for water heating floor

Type of control

mechanical

Installation method

in outlet box

Fusing current

16

Minimum temperature, °C

+10

Maximum temperature, °C

+40

Maximum load power

3000 VA

Supply voltage

230 V ± 10 %

Weight of full package

0, 18 kg ± 10 %

Overall dimensions (W x H x D)

75 х 75 х 43 mm

Inner overall dimensions of decorative frame

45 х 45 mm

Temperature sensor

NTC thermo-resistor 10 KOM at 25 °C (R10)

Length of connection wire of sensor

3 m

Number of actuations under load, not less than

50 000 cycles

Number of actuations without load, not less than

20 000 000 cycles

Temperature hysteresis

1 °С

IP rating according to GOST

IP20

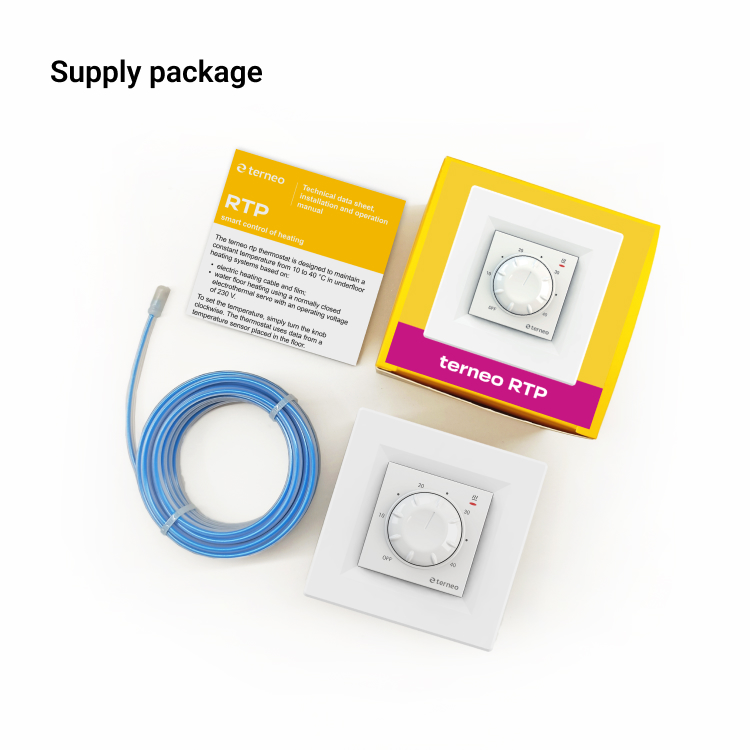

Supply package

Thermostat, frame, instruction, temperature sensor with connected sensor, the packing box
