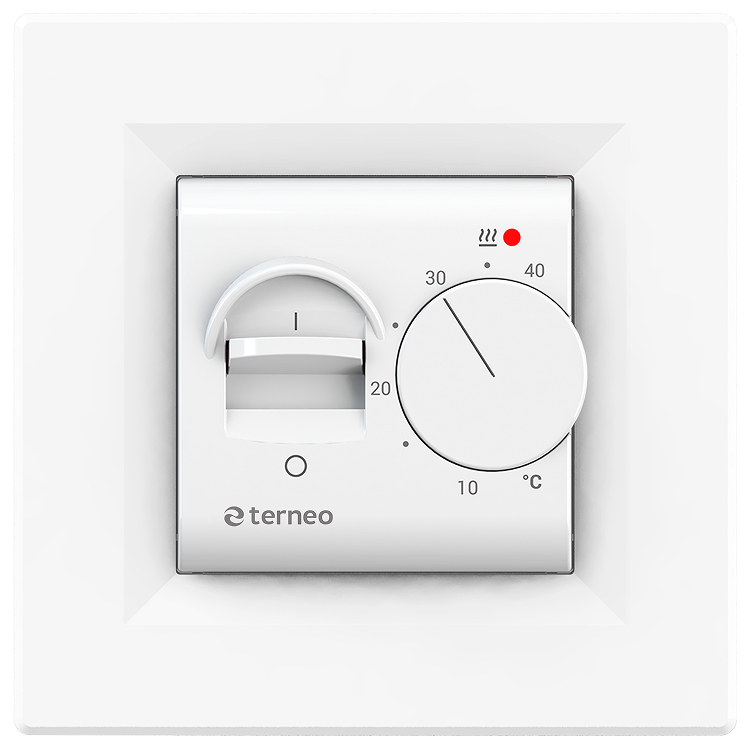

Thermostat terneo mex

    Regulates operation of the floor heating system according to the floor temperature.
  • Maintains temperature from on the floor 10 to 40 ° С.
  • Button locK, child protection.
  • Mechanical handle and toggle switch control

Shipping options

Calculated individually for your region

Warranty

5 years from sale date

Opportunity to get samples and promotional materials

Manufacturer official website

You are on the official website of terneo and ZUBR brands manufacturer! Order directly from the manufacturer!

Manuals

terneo mex thermostat is a simple solution for comfortable conditions

Video review on terneo mex thermostats. Please turn on English subtitles!

The thermostat is designed to work with “heating floor” systems based on an electric heating cable or film. It is capable to constantly maintain temperature in the range of 10 to 40 ° C. Uses temperature data from a sensor placed in the floor.

Full control

Turn on the heating when you wish. Intuitive temperature control with a mechanical handle. The presence of a toggle switch allows you to turn off the thermostat  without changing the set temperature level.

All you need for installation is in the package

The standard package includes a thermostat, a temperature sensor with a connecting wire and a decorative frame, which will be an addition to any interior. Installation is realized in a standard sub-socket with a diameter of 60 mm.

Universal thermostat

The device is compatible with most of electrical heating cables and films on the market.  Don’t limit your сhoice!

Technical specifications terneo mex

Model group

terneo mex

Sphere of application

for underfloor heating, for water heating floor

Type of control

mechanical

Installation method

in outlet box

Fusing current

16

Minimum temperature, °C

+10

Maximum temperature, °C

+40

Maximum load power

3000 VA

Supply voltage

230 V ± 10 %

Weight of full package

0, 17 kg ± 10 %

Overall dimensions (W x H x D)

75 х 75 х 43 mm

Inner overall dimensions of decorative frame

45 х 45 мм

Temperature sensor

NTC thermo-resistor 10 KOM at 25 °C (R10)

Length of connection wire of sensor

3 m

Number of actuations under load, not less than

50 000 cycles

Number of actuations without load, not less than

20 000 000 cycles

Temperature hysteresis

1 °С

IP rating according to GOST

IP20

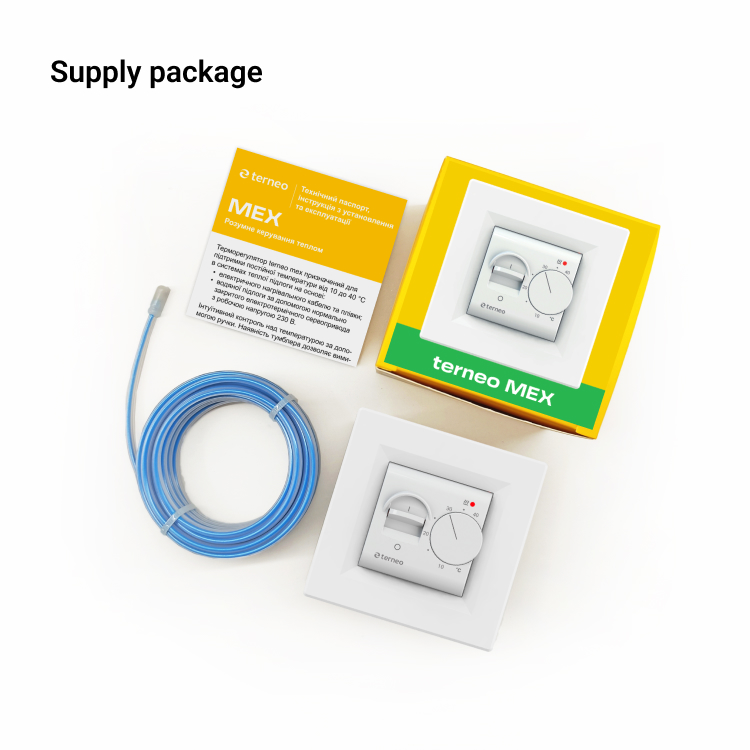

Supply package

Thermostat, frame, instruction, temperature sensor with connected sensor, the packing box
