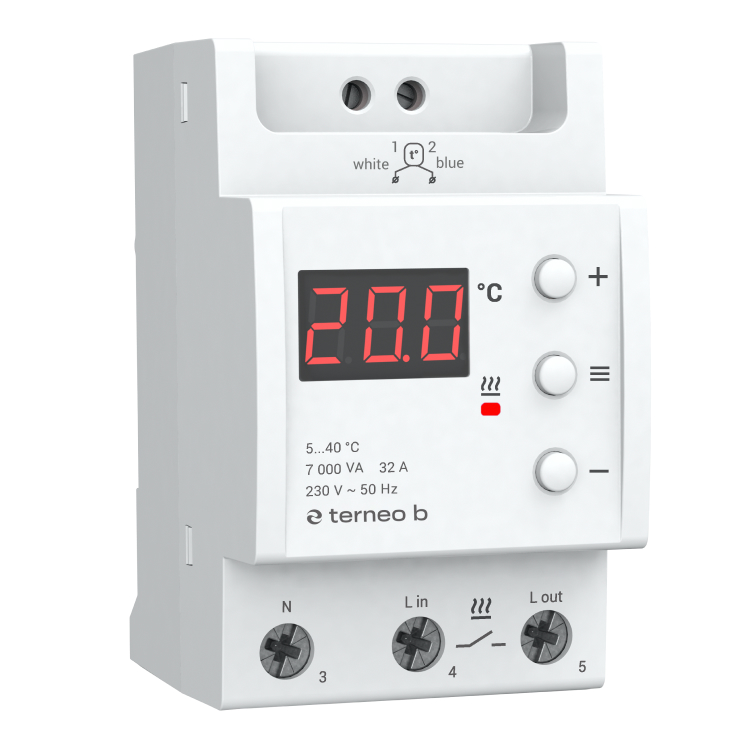

Thermostat terneo b from 32 A

terneo b thermostat – for high capacities

terneo b thermostat is designed to work with “heating floor” systems based on electric heating cable. A feature of this model is the ability to use it with systems of high rated power (up to 7000 VA). The thermostat allows you to maintain the set temperature from 5 to 40 ° C. Temperature data comes from a sensor placed in the floor.

How to set up terneo b

Before watching, make sure to turn on subtitles and choose your language!

Easy operation

There are only three buttons for setting the required parameters. The digital screen displays the current temperature, as well as simplifies navigation in the thermostat menu.

Easy connection and installation

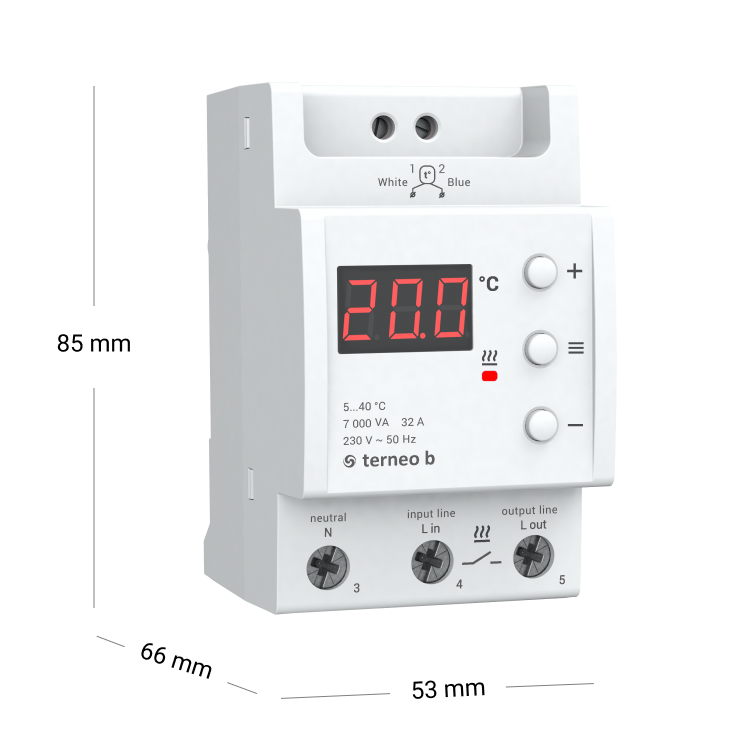

The delivery package includes all necessary equipment: a thermostat  and a temperature sensor with a connecting wire 4 m long. Installation is realized in a 35 mm wide DIN-rail switchboard.

Safety first

The thermostat is resistant to voltage differences. It is protected from overheating: if the temperature inside the housing reaches 80 ° C, the device will turn off. Once per second “oht” will be displayed on the screen. To resume operation, the temperature must drop to 60 ° C. If the protection works more than 5 times, the thermostat will turn off until the temperature drops to 60 ° C and one of the buttons is pressed. The housing of the device is made of non-flammable polycarbonate.

Universal thermostat

You can use the terneo b thermostat with heating cables from most manufacturers on the market. The device is also compatible with digital (D18) temperature sensors.
