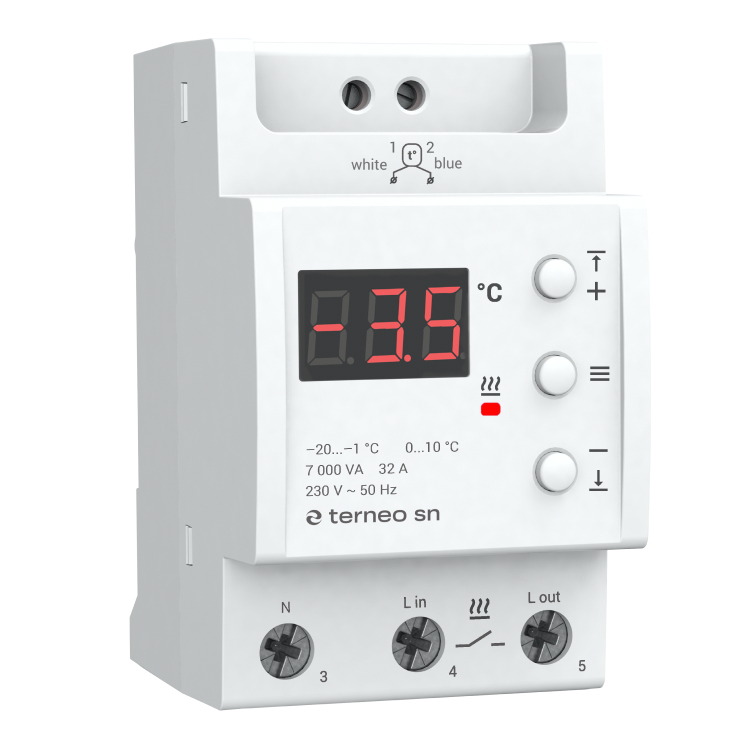

Thermostat terneo sn 32 A

Safe in winter with terneo sn

The thermostat is designed to work with anti-icing and snow melting systems of increased power (up to 7 000 VA). Provides optimal operation by adjusting the temperature range at which icicles or ice on the ground  can be formed. You do not waste electricity when the temperature outside is too low or sufficient for natural melting.

How to set up terneo sn

Before watching, make sure to turn on subtitles and choose your language!

Easy operation

The thermostat is set up with only three buttons! The digital screen displays temperature and system notifications, and simplifies menu navigation.

Easy installation

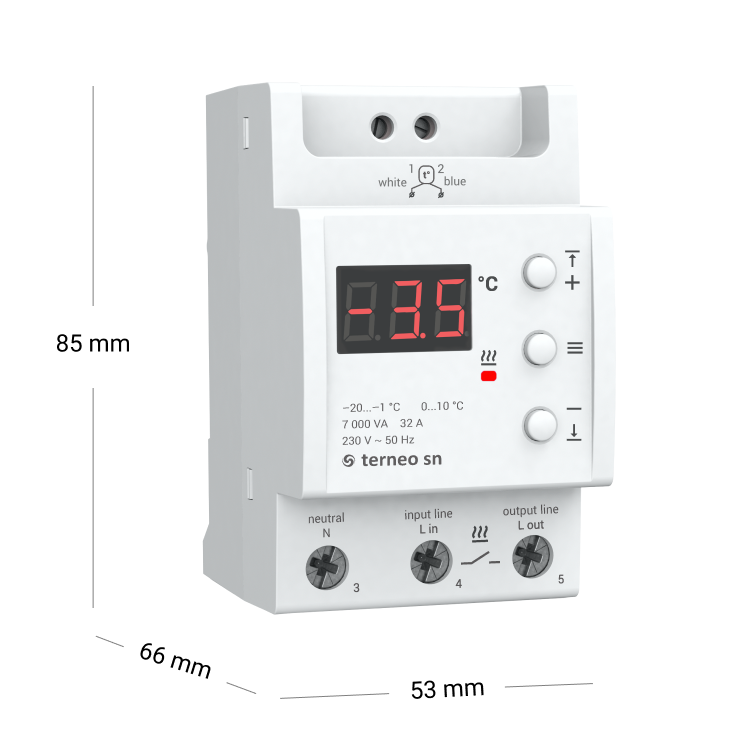

The package includes a thermostat and a temperature sensor with a connecting wire. The device is mounted on a standard 35 mm wide DIN-rail, and the temperature sensor is located outside the house in a place without direct sunlight and precipitation influence.

Overheating protection

If the temperature inside the housing reaches 80 °C, the device will be disconnected. The “oht” will be displayed on the screen 1 p/s. To resume operation, the temperature must drop to 60 °C. If the protection works more than 5 times, the thermostat will turn off until the temperature drops 60 °C and one of the buttons is pressed.

Universal thermostat

You can use it with heating cables from most manufacturers. The device can work with analog (R10) or digital (D18) sensors.
