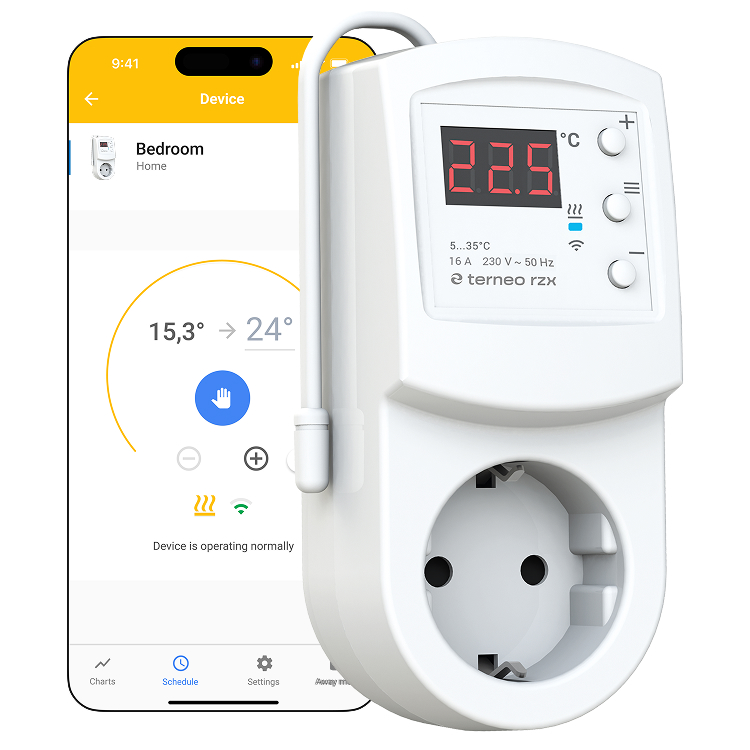

Thermostat terneo rzx for infrared panels and convectors

  • Control from a smartphone, my.terneo from anywhere in the world.
  • Statistics of energy consumption.
  • Graphs of consumption in money (choice of currency, multi-tariff suppor.

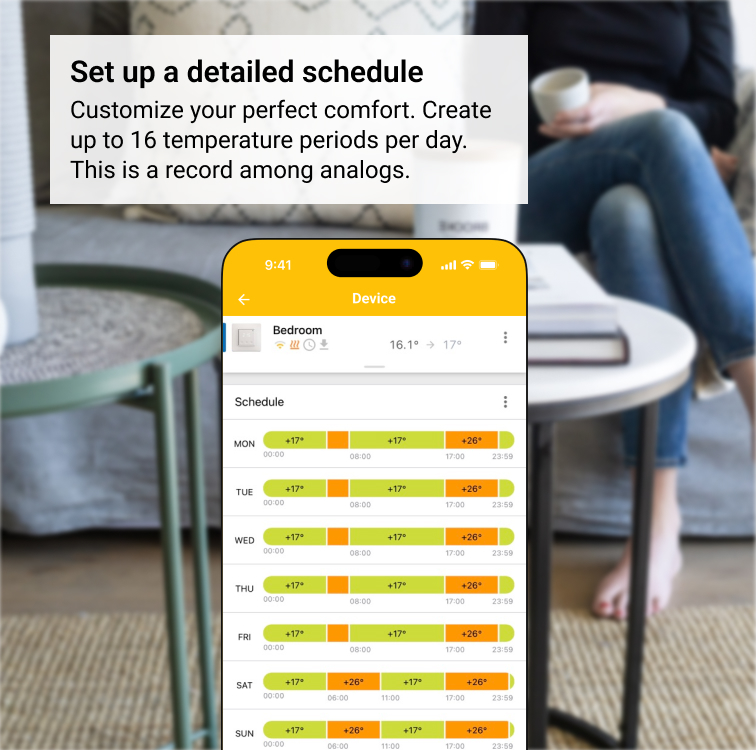

  • Detailed schedule up to 16 periods.
  • Departure, Preheating, Open window, thermal protection.
  • Group control.
  • The ability to connect to the Smart Home.

Shipping options

Calculated individually for your region

Warranty

5 years from sale date

Opportunity to get samples and promotional materials

Manufacturer official website

You are on the official website of terneo and ZUBR brands manufacturer! Order directly from the manufacturer!

Manuals

Smart heating is now on your smartphone

Use the terneo app or voice through Google Home to control heating from anywhere. To work with statistics on a group of thermostats, it is convenient to use my.terneo.ua PC application. Get instant access to your home temperature, heating dynamics, and energy reports in kWh and money.

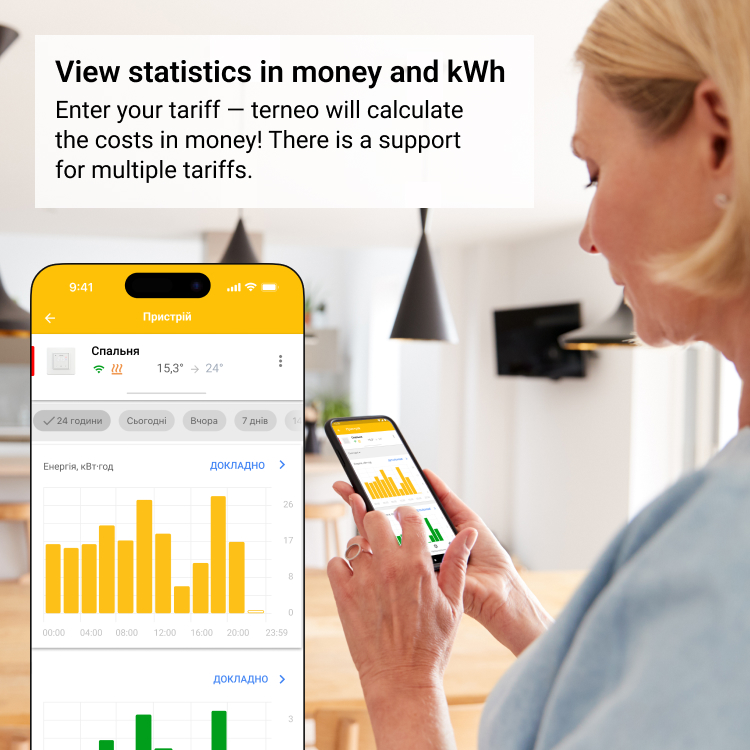

See how much you saved

By seeing the dynamics of energy consumption in a month or heating season, you can improve your schedule. Please note that reducing the temperature by only 1 degree can save you up to 5% of your electricity.

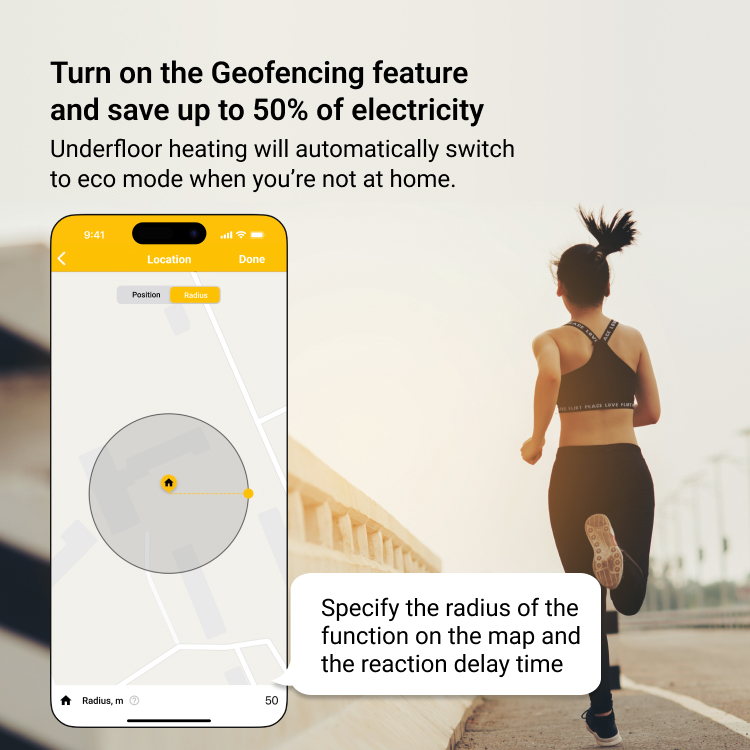

Geofencing for maximum savings

Nobody at home? No energy costs! With Geofencing, the heating is location dependent and will only turn on when you are at home or already on your way home. More details about the function and its settings read the article 3 minutes.

Operate with your voice through Google Assistant

Voice control via Google Assistant is available in the countries indicated in the link https://store.google.com/regionpicker?pli=1.

To adjust the temperature by voice command, for example, say “Okay Google, set temperature in the children’s room at 25 degrees” and comfort is provided! Now you can install the thermostat anywhere, even hide behind the furniture and no need to look for a phone to enter the mobile application. We implant the latest technologies into terneo devices for your convenience!

It takes only 5 minutes to connect

Download the free app on Google Play or AppStore, run it. Set the thermostat to Access Point mode. In the application, click Add Thermostat. Select the network created by the thermostat (for example, terneo sx_A68FDB), then enter your Wi-Fi password. Done!

Contribute for the good of the planet — replace the ordinary thermostat with a smart one

terneo thermostats are compatible with heating cables, films, analog (R10) and digital (D18) sensors of most manufacturers. It has a neat minimalist screen which saves electricity! At the same time, you get maximum functions and flexibility in terneo application and this is the most beautiful part of it. Remote control, expenses schedules, and the ability of terneo to self-learning provide greater heating savings and superior comfort.

Integrate heating floors into the Smart Home system

We understand the importance and relevance of Smart Home automation systems and have prepared tools for integration into your systems. We support the MQTT protocol. An http API is also available.

Facilities of the terneo app brochure download

How to connect the terneo RZX Smart Wi-Fi thermostat to Mobile app

The video is relevant for connecting all terneo Smart Wi-Fi thermostats to Mobile app: terneo sx, terneo ax, terneo bx, terneo rzx.

Technical specifications terneo rzx

Model group

terneo rzx

Sphere of application

for cooling and ventilation, for infrared panels and convectors

Type of control

wi-fi

Installation method

in socket

Fusing current

16

Minimum temperature, °C

+5

Maximum temperature, °C

+35

Maximum load power

3000 VA

Supply voltage

230 V ± 10 %

Weight of full package

0, 19 kg ± 10 %

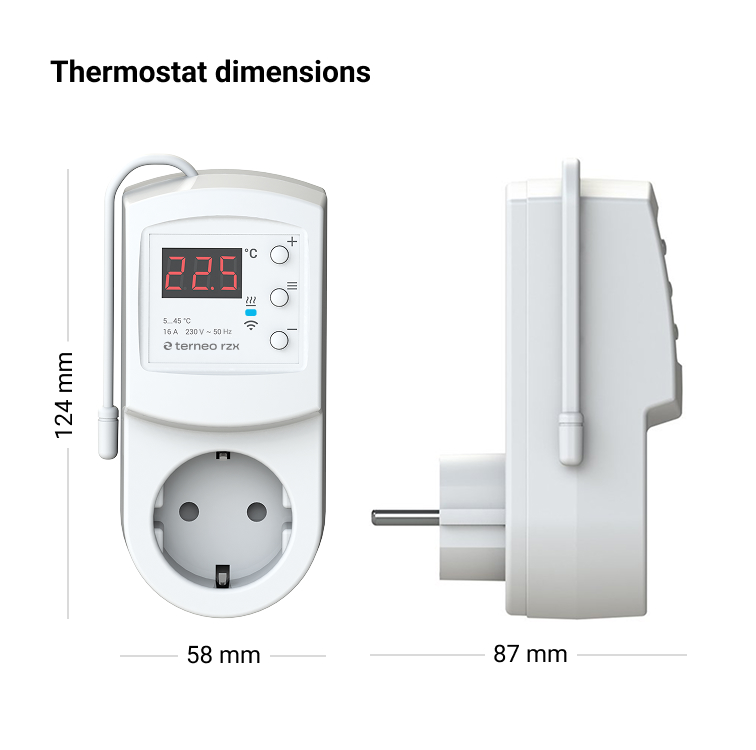

Overall dimensions (W x H x D)

58 x 124 x 87 mm

Length of connection wire of sensor

0, 1 m

Temperature hysteresis

0, 5…10 °С

IP rating according to GOST

IP20

Supply package

Thermostat, instruction, the packing box

Wireless networ standard (Wi-Fi)

802.11 b/g/n

Initital Wi-Fi power

+20 dBm

Operating frequency range

2400-2483, 5 MHz

Minimal Internet traffic

20-30 MB/month
