Thermostat terneo rol

terneo rol thermostat – all in one housing

The thermostat is designed to maintain the specified air temperature in the range from 0 to 35 ° С. It does not require additional sensors to function. Ideal for rooms heated by infrared panels and convectors up to 3 kW. Operation status is indicated by using green and red LED lamps.

Comfort indoors is under your control

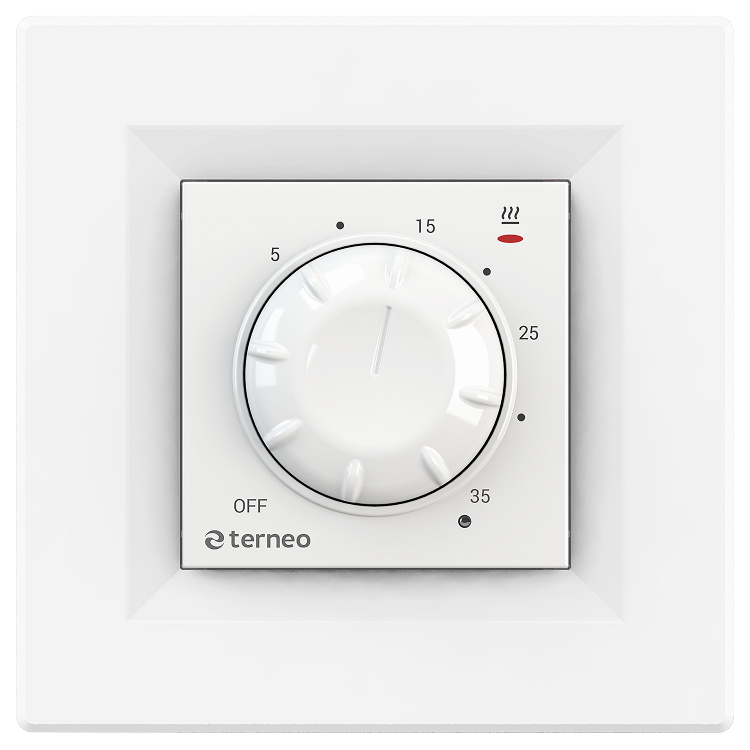

Turn on the heating when you wish. Just turn the mechanical handle to the temperature you want. Only one mechanical grip is used to select the temperature and adjust the load power.

Adjust the thermostat to the power of the connected equipment. This will help the thermostat more accurately maintain the desired indoor air temperature.

Self-diagnostics system

Despite the simple design, terneo rol thermostat has a self-diagnostics system. A red LED with a series of lights will alert you if there is a short circuit or a problem with the temperature sensor.

Simple installation

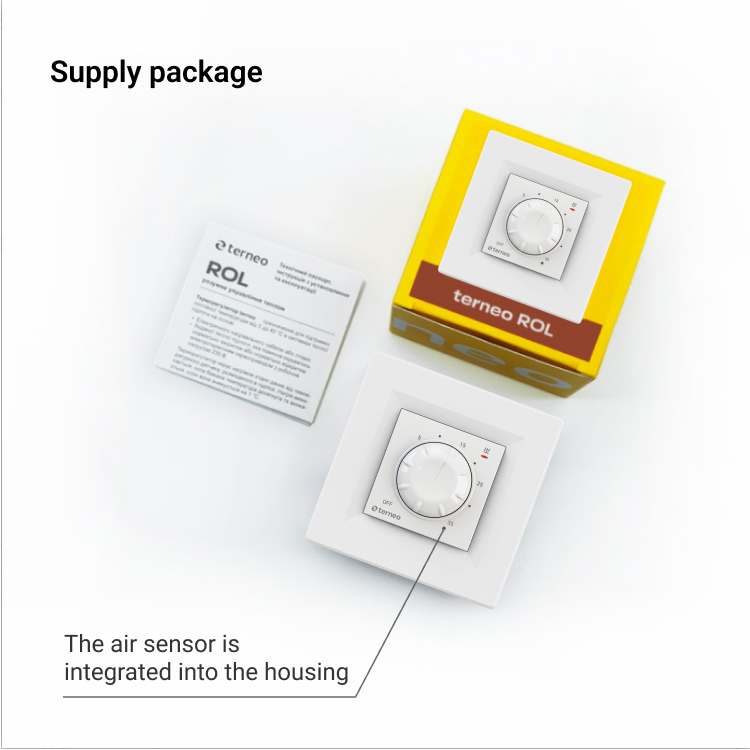

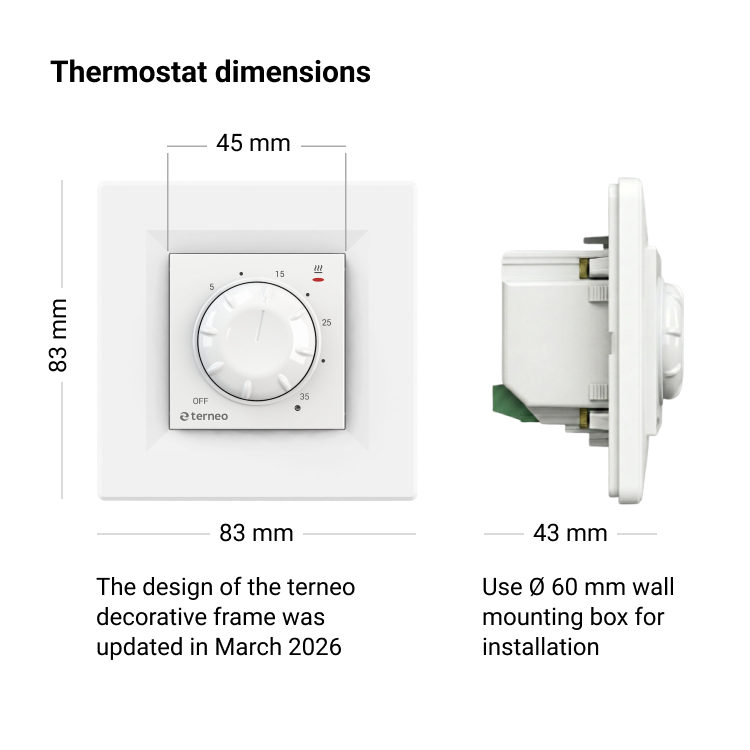

Everything necessary for comfortable heating is already in the package. You do not have to use an additional temperature sensor, it is already integrated in the thermostat! The installation of the device is realized in a sub-socket, and the decorative frame will provide an elegant look.

Overheating protection

If the temperature inside the housing rises above 95 ° C, the thermostat will immediately turn off. The operation will resume only after it drops to 85 ° C.
