Thermostat terneo xd for cooling and ventilation

terneo xd: thermostat of the ice age

The device is designed for operation with cooling, air conditioning systems, as well as freezing equipment. With the help of data from the temperature sensor, the thermostat can maintain a temperature in the range from -55 to + 125 °C.

Long service life

If you do not need to constantly maintain a certain temperature value, then set its range. This is possible due to the hysteresis of the device from 0.5 to 25 °C. Maintaining the temperature in a certain range will reduce the number of on/off of the thermostat, which helps to extend its service life.

Comfortable operation

The device is set with only three buttons, and all necessary information is displayed on the digital screen.

Easy installation

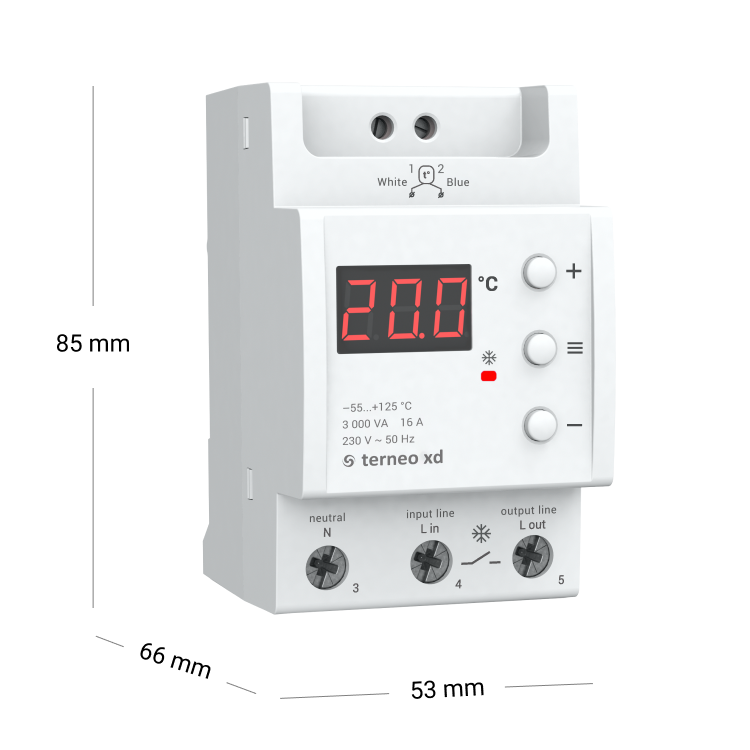

The thermostat is installed in the board on a 35 mm wide DIN-rail. All necessary components for the thermostat are already in the package!

Overheating protection

If the temperature inside the housing rises above 80 °C, the thermostat will stop its operation. To resume it, the temperature must drop to 60 °C, and you need to press any button to unlock the device.

Universal thermostat

You can use terneo xd with both digital (DS18B20) and analog (R10) sensors. For the latter, the range of available temperatures is from -30 °C to + 90 °C.
