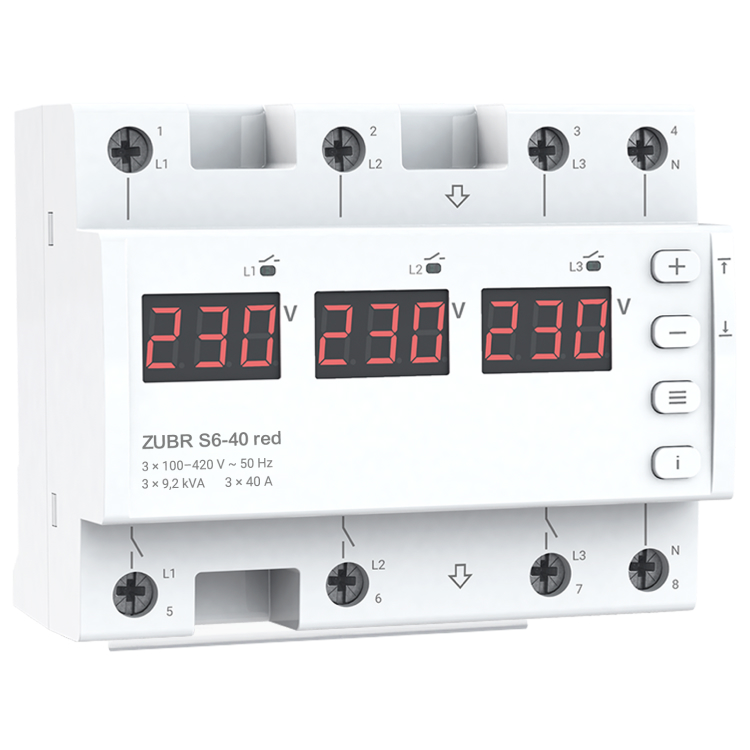

Phase selector switch ZUBR S6-40 red

A stable power supply for priority equipment

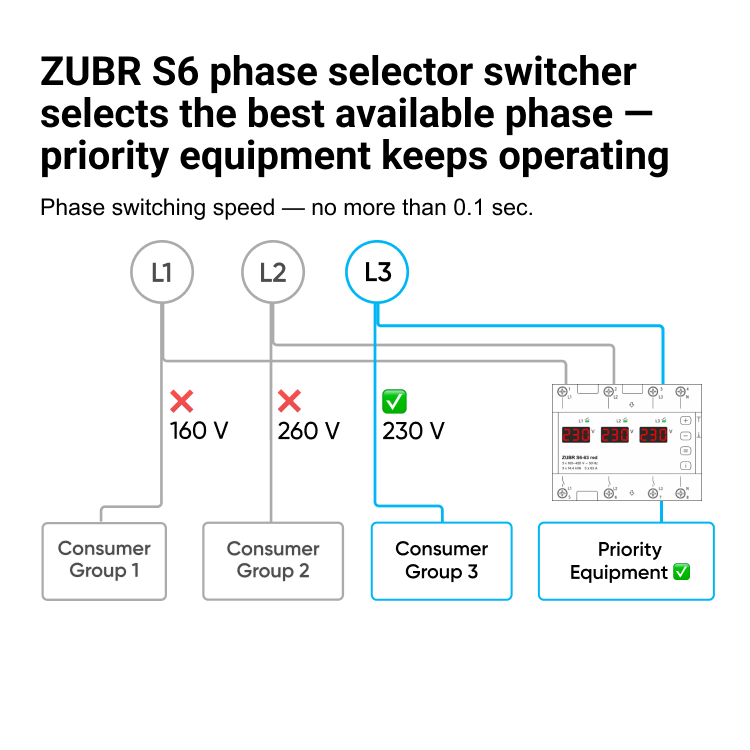

How the phase switch works: the device constantly monitors the voltage across all three phases (L1, L2, L3). If the voltage on the phase supplying priority equipment exceeds the set limits or drops to zero, ZUBR switches the power supply for that equipment to another stable phase. And, of course, it protects your equipment from critically high and low voltages.

Video guide How to set up a phase selector switcher

Before watching the video, please select the audio track language: English, Romanian and Uzbek!

Examples of priority equipment

✔ For business operations — medical equipment, refrigeration and retail equipment, server rooms, POS systems
✔ For personal needs — lighting, heating, computers, EV charging stations, ventilation — everything that matters most to you

High switching speed

High switching speed is a key advantage of the ZUBR S6. This parameter often determines whether a switch is suitable for a particular application. The ZUBR S6 ensures the uninterrupted operation of your mission-critical equipment thanks to its phase-to-phase switching speed of 0.1 seconds.

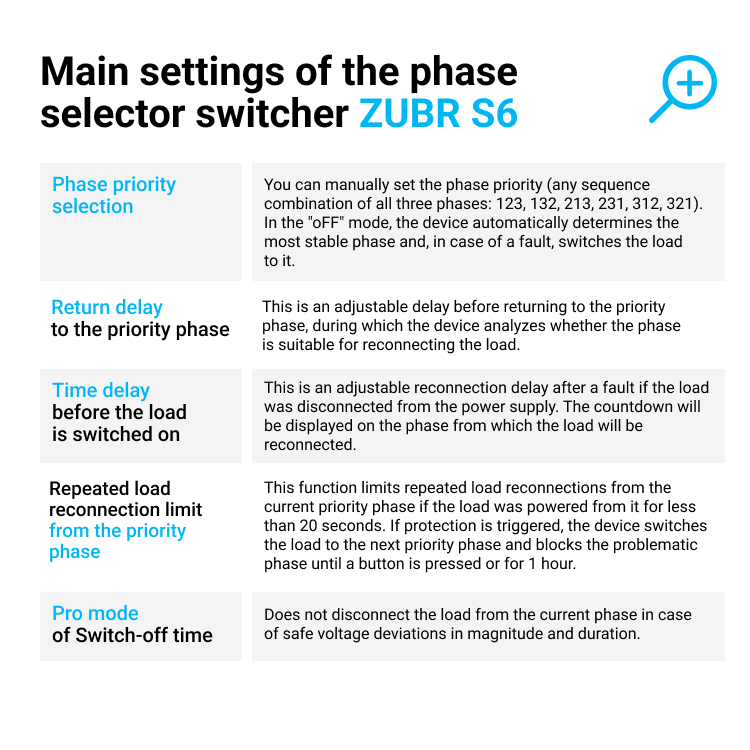

Automatic and manual phase priority selection

You can manually set the phase priority (any combination of the sequence of all three phases: 123, 132, 213, 231, 312, 321). In «oFF» mode, the device automatically detects the most stable phase and, in the event of a fault, switches the load to that phase.

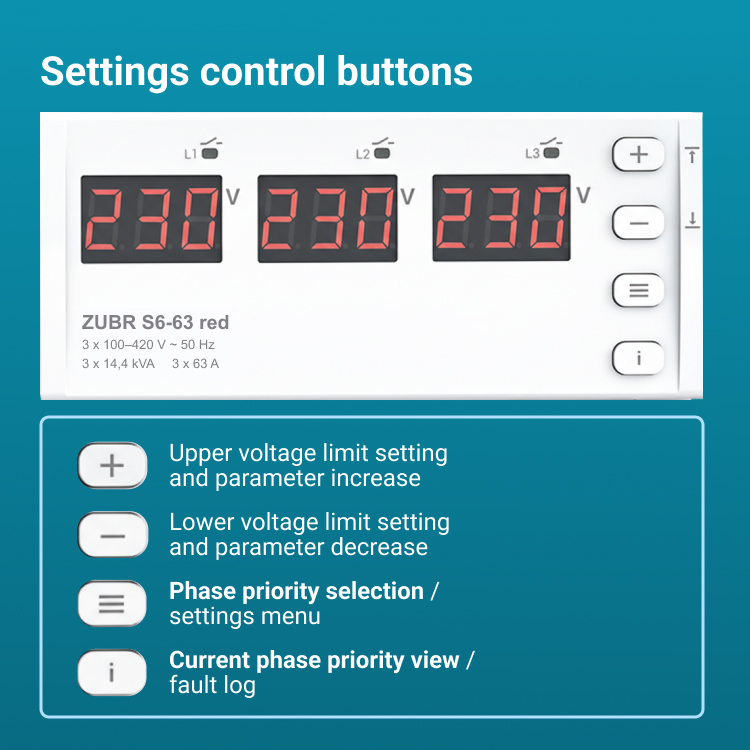

To view the settings, hold down the «i» button for 3 seconds. The phase priority settings are described in the table under the «Pri» menu item.

The standard ZUBR features are included:

— protection against high and low voltage for priority equipment;
— monitoring of mains quality via the Alarm log;
— flexible post-fault delay settings;
— advanced settings (Pro mode, hysteresis and others);
— thermal protection.

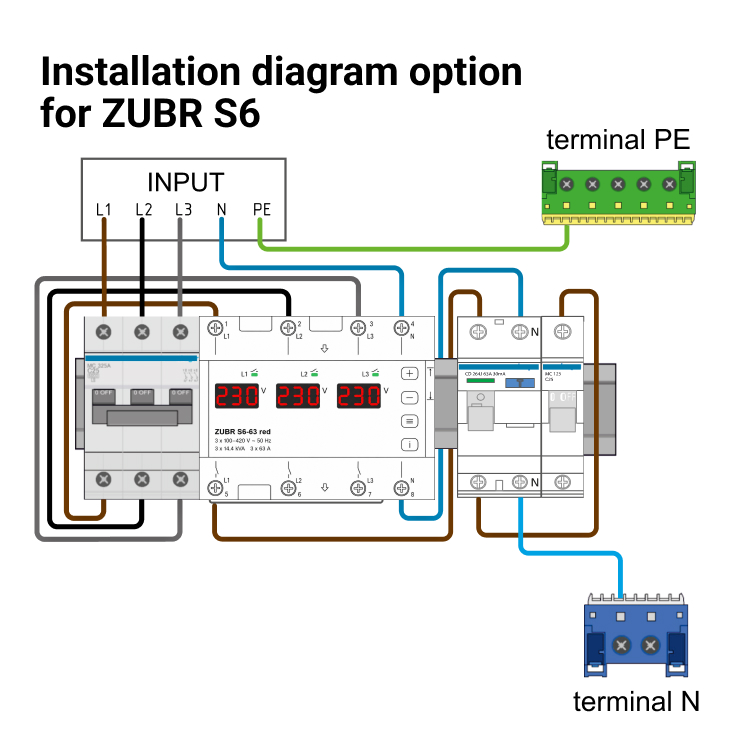

Easy installation

The ZUBR S6 phase selector occupies 6 standard modules in a distribution board mounted on a standard 36 mm wide DIN-rail. The busbar for connecting the common neutral can be replaced with a longer one, for example, one shared with the circuit breakers. If the room has high humidity or there is a risk of water coming into contact with the device, the switchboard must comply with protection class IP20 (in accordance with DSTU 14254).
