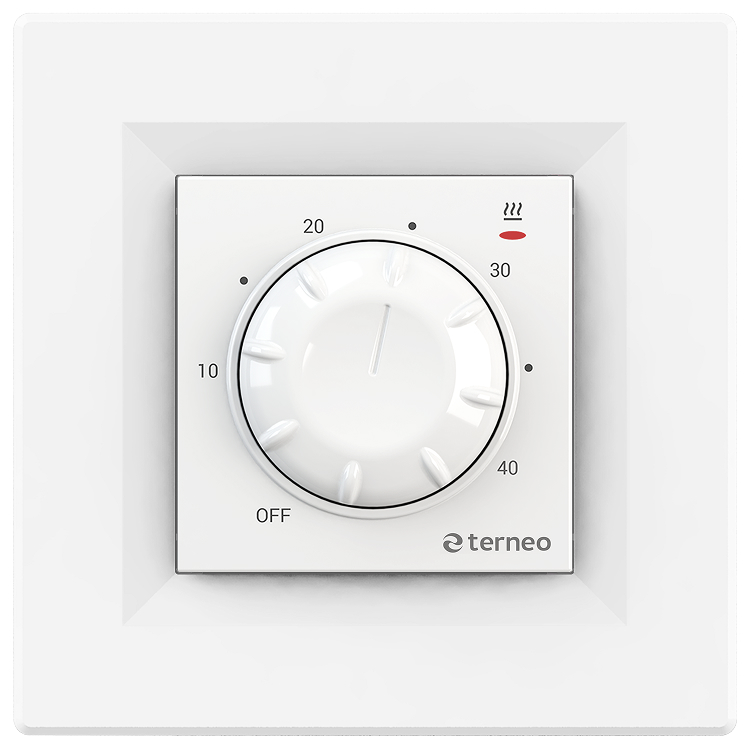

terneo rtp temperature controller - the best choice for simple solutions

Video review on terneo rtp thermostats. Please turn on English subtitles!

Mechanical temperature controller for "warm floor" systems based on electrical heating cable or film. It constantly maintains a predetermined temperature in the range of 10 to 40 ° C. The data of the temperature sensor placed in the floor is used for operation.

Easiest operation

To adjust the temperature, simply turn the control knob clockwise. Very simple control will allow people, who don't get along with technology, to use the thermostat.

All you need for installation is in the package

The package includes the thermostat itself, a temperature sensor with a connecting wire of 3m length and a decorative frame. The thermostat is mounted in a standard 60 mm diameter sub-socket.
Universal thermostat

Use the device with heating cables and films of most manufacturers. Don't limit your сhoice!

Technical properties of terneo rtp

Sphere of application:
for underfloor heating, for water heating floor
Type of control:
Installation method:
in outlet box
Fusing current:
Minimum temperature, °C:
Maximum temperature, °C:
Maximum load power:
3000 VA
Supply voltage:
230 V ± 10 %
Weight of full package:
0,18 kg ± 10 %
Overall dimensions (W x H x D):
75 х 75 х 43 mm
Inner overall dimensions of decorative frame:
45 х 45 mm
Temperature sensor:
NTC thermo-resistor 10 KOM at 25 °C (R10)
Length of connection wire of sensor:
3 m
Number of actuations under load, not less than:
50 000 cycles
Number of actuations without load, not less than:
20 000 000 cycles
Temperature hysteresis:
1 °С
IP rating according to GOST:

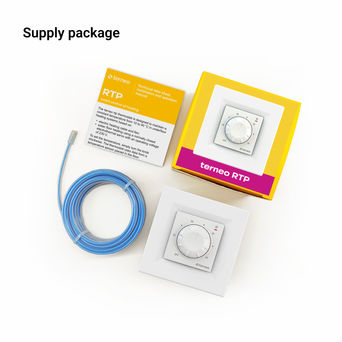

Supply package:
Thermostat, frame, temperature sensor with connected sensor, warranty certificate, technical passport, instruction, the packing box

Reviews and questions (3)

Write a testimonialAsk a question
2 September 2020
Чи підійде рамка Schneider Electric Asfora?
Олексій, інженер тех-підтримки2 September 2020

Ні, не підійде.

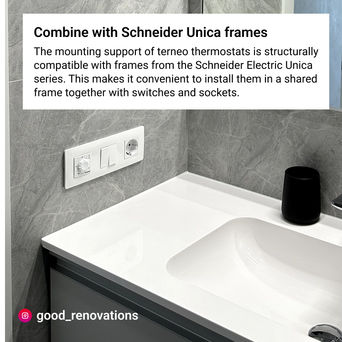

Терморегулятори terneo для установки в монтажну коробку сумісні з оригінальною рамкою terneo і рамками Schneider-Electric серии Unica Basic, Unica Colors, Unica Quadro, Unica Plus, Unica Top, Unica Class, Unica New.

20 May 2020




6TN19WT6 У вас не израсходован бонусный счёт внутри на сайте
Вася Пожидаев
14 June 2018

Легкий монтаж. Понятное управление.



Основной фактор при выборе - возможность установки в рамки Unica | Schneider Electric.
